2016Scooter

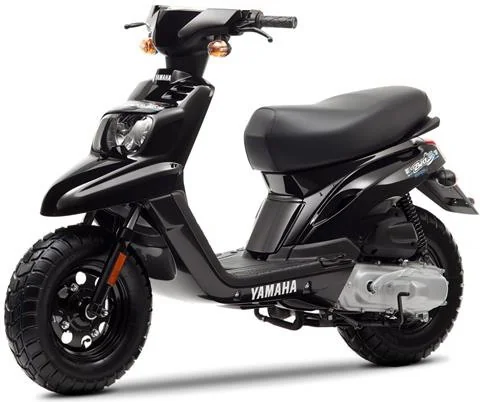

Yamaha BWs Easy
Key specifications
Engine
49 cc
Power
3 HP
Torque
4 Nm
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- BWs Easy
- Category
- Scooter
- Light
- Dual headlights and large tail light
- Starter
- Kick
- Color Options
- Midnight black
- Carrying Capacity
- Luggage/helmet-carrying hook
- Power
- 3.22 HP (2.4 kW)) @ 6500 RPM
- Torque
- 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Fuel System
- Carburettor. Gurtner
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 7.2:1
- Displacement
- 49.20 ccm (3.00 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Transmission Type Final Drive
- Belt
- Seat Height
- 768 mm (30.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.30 litres (1.40 gallons)
- Overall Width
- 675 mm (26.6 inches)
- Overall Length
- 1,685 mm (66.3 inches)
- Ground Clearance
- 124 mm (4.9 inches)
- Weight Incl Oil Gas Etc
- 82.0 kg (180.8 pounds)
- Seat
- Padded dual seat and passenger grab bars
- Rear Tyre
- 130/80-10
- Frame Type
- Steel
- Front Tyre
- 120/90-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 70 mm (2.8 inches)
- Front Wheel Travel
- 70 mm (2.8 inches)
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 110 mm (4.3 inches)
Available colors
Midnight black
