Back to Bike FinderYears: 2024 · 2018 · 2017 · 2007
2024Allround

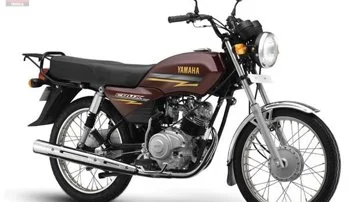

Yamaha Crux
Key specifications
Engine
106 cc
Torque
8 Nm
Fuel type
petrol
Fuel capacity
2.9 L
Transmission
4-speed
Seat height
31 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Crux
- Category
- Allround
- Starter
- Kick
- Comments
- Sold in India.
- Electrical
- 12V-2.5Ah (10H) battery.
- Color Options
- Black
- Clutch
- Wet multiple disc
- Torque
- 7.5 Nm (0.8 kgf-m or 5.5 ft.lbs) @ 6000 RPM
- Gearbox
- 4-speed
- Ignition
- C.D.I.
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Bore X Stroke
- 49.0 x 56.0 mm (1.9 x 2.2 inches)
- Compression
- 9.0:1
- Displacement
- 106.0 ccm (6.47 cubic inches)
- Cooling System
- Air
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 11.00 litres (2.91 US gallons)
- Overall Width
- 735 mm (28.9 inches)
- Overall Height
- 1075 mm (42.3 inches)
- Overall Length
- 2000 mm (78.7 inches)
- Ground Clearance
- 160 mm (6.3 inches)
- Weight Incl Oil Gas Etc
- 113.0 kg (249.1 pounds)
- Rake
- 26.0°
- Trail
- 81 mm (3.2 inches)
- Rear Tyre
- 2.75-18
- Frame Type
- Double-cradle, steel
- Front Tyre
- 2.50-18
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic fork
Available colors
Black
