2018Scooter

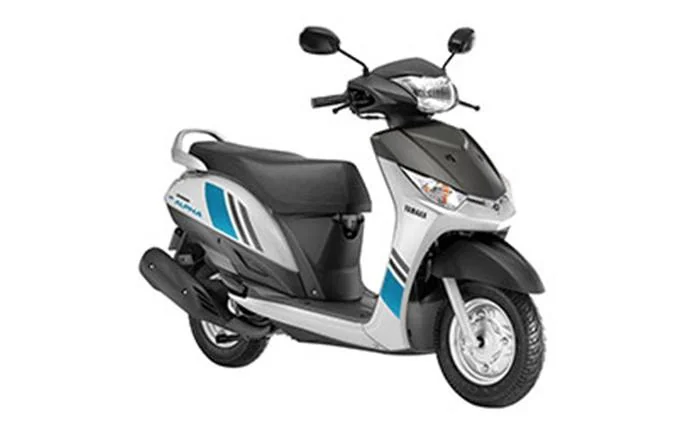

Yamaha Cygnus Alpha
Key specifications
Engine
113 cc
Power
7 HP
Torque
8 Nm
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc. Optional drum
Rear brakes
Single disc. Optional drum
Technical details
Source specification data
- Make
- Yamaha
- Model
- Cygnus Alpha
- Category
- Scooter
- Starter
- Electric & kick
- Electrical
- 12 V, 5 AH (10 HR) battery.
- Color Options
- Blue, cyan, black
- Power
- 7.20 HP (5.3 kW)) @ 7500 RPM
- Clutch
- Dry, centrifugal, shoe
- Torque
- 8.10 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 5000 RPM
- Gearbox
- Automatic
- Ignition
- C.D.I.(Capacitor Discharge lgnition)
- Driveline
- V-Belt Automatic
- Fuel System
- Carburettor
- Bore X Stroke
- 50.0 x 57.8 mm (2.0 x 2.3 inches)
- Compression
- 9.2:1
- Displacement
- 113.00 ccm (6.90 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Belt
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.20 litres (1.37 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 1,125 mm (44.3 inches)
- Overall Length
- 1,795 mm (70.7 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Weight Incl Oil Gas Etc
- 102.0 kg (224.9 pounds)
- Rear Tyre
- 90/100-10
- Frame Type
- Underbone
- Front Tyre
- 90/100-10
- Rear Brakes
- Single disc. Optional drum
- Front Brakes
- Single disc. Optional drum
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
Available colors
Bluecyanblack
