2015Scooter

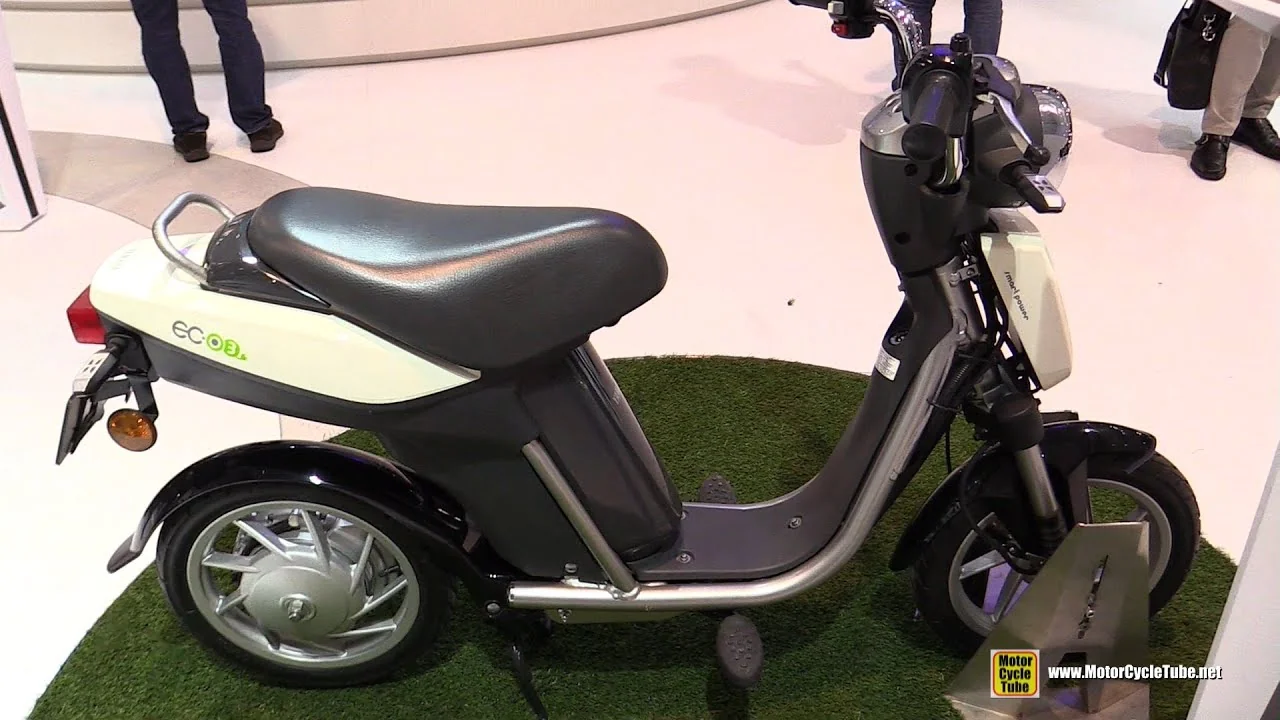

Yamaha EC-03
Key specifications
Power
2 HP
Torque
10 Nm
Weight
56 kg
Fuel type
electric
Transmission
Automatic
Seat height
29 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- EC-03
- Category
- Scooter
- Light
- Multi-reflector headlight
- Starter
- Electric
- Comments
- Lithium
- -ion battery.
- Onboard
- plug-in charger. 7 hours charging.
- Electrical
- 50 Volt 15 Ah battery
- Instruments
- Digital LCD display
- Color Options
- White, Bronze
- Carrying Capacity
- Luggage hook
- Power
- 1.88 HP (1.4 kW)) @ 2550 RPM
- Torque
- 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 280 RPM
- Gearbox
- Automatic
- Top Speed
- 45.0 km/h (28.0 mph)
- Driveline
- Sun and planet gear
- Engine Type
- AC synchronous motor
- Cooling System
- Air
- Engine Details
- Electric
- Emission Details
- No emissions
- Dry Weight
- 56.0 kg (123.5 pounds)
- Seat Height
- 745 mm (29.3 inches) If adjustable, lowest setting.
- Overall Width
- 600 mm (23.6 inches)
- Overall Height
- 990 mm (39.0 inches)
- Overall Length
- 1,565 mm (61.6 inches)
- Ground Clearance
- 110 mm (4.3 inches)
- Power Weight Ratio
- 0.0336 HP/kg
- Rear Tyre
- 60/100-12
- Frame Type
- Aluminum Backbone
- Front Tyre
- 60/100-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Mono shock, Swingarm
- Front Suspension
- Cartridge fork
- Rear Wheel Travel
- 55 mm (2.2 inches)
- Front Wheel Travel
- 50 mm (2.0 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 95 mm (3.7 inches)
Available colors
WhiteBronze
