Back to Bike FinderYears: 2013
2012Sportbike

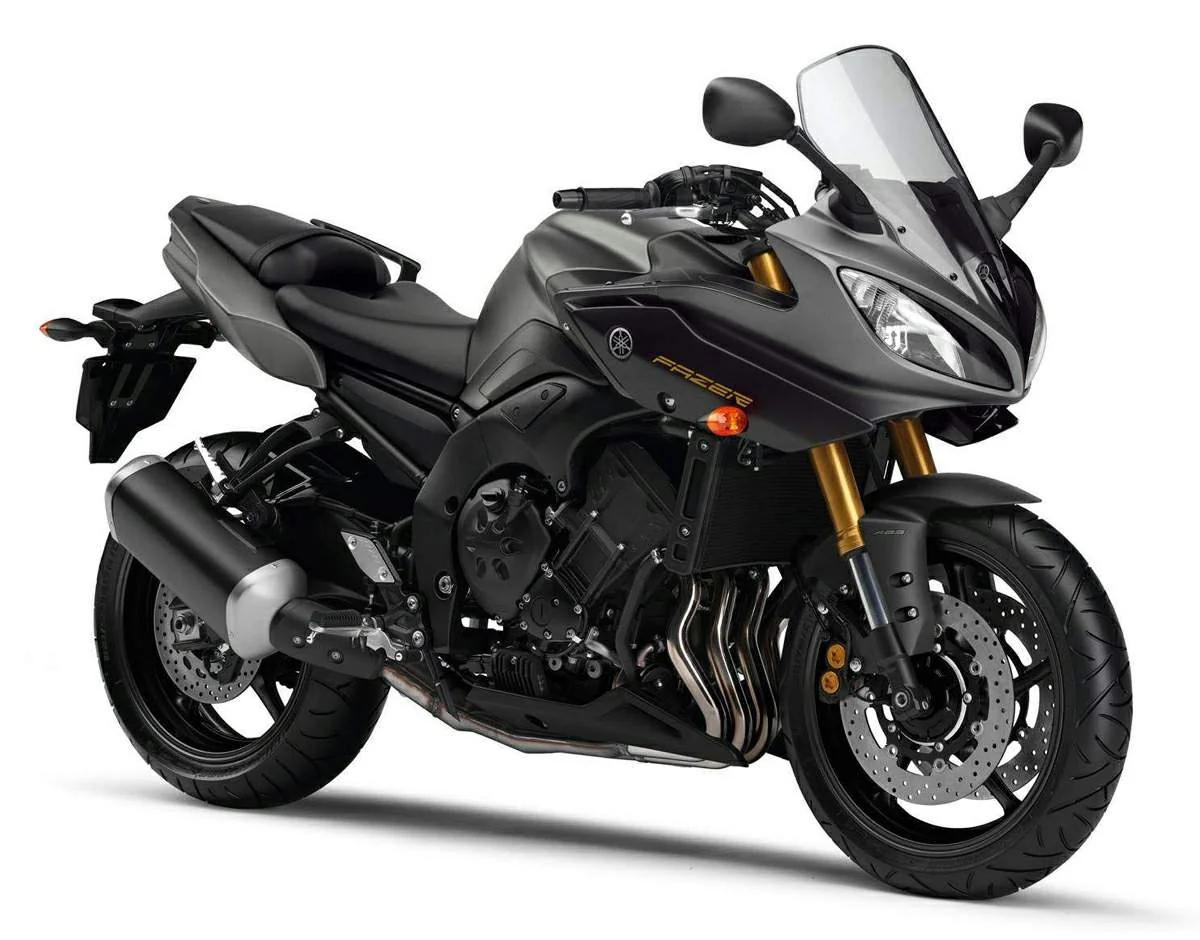

Yamaha Fazer8 ABS
Key specifications
Engine
779 cc
Power
105 HP
Torque
82 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Anti-lock brakes
Rear brakes
Single disc. Anti-lock brakes
Technical details
Source specification data
- Make
- Yamaha
- Model
- Fazer8 ABS
- Category
- Sport
- Starter
- Electric
- Power
- 104.73 HP (76.4 kW)) @ 10500 RPM
- Clutch
- Multiple-disc coil spring, Wet
- Torque
- 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 8000 RPM
- Gearbox
- 6-speed
- Ignition
- Transistorized coil ignition
- Driveline
- Constant mesh
- Fuel System
- Injection. Electronic fuel injection
- Bore X Stroke
- 68.0 x 53.6 mm (2.7 x 2.1 inches)
- Compression
- 12.0:1
- Displacement
- 779.00 ccm (47.53 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain
- Seat Height
- 815 mm (32.1 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (0.25 quarts)
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1,225 mm (48.2 inches)
- Overall Length
- 2,140 mm (84.3 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Weight Incl Oil Gas Etc
- 219.0 kg (482.8 pounds)
- Rake
- 25.0°
- Trail
- 109 mm (4.3 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Deltabox, aluminium
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Anti-lock brakes
- Front Brakes
- Single disc. Anti-lock brakes
- Rear Suspension
- Swingarm, (link suspension)
- Front Suspension
- Telescopic forks, 43 mm inner tube
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 267 mm (10.5 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
