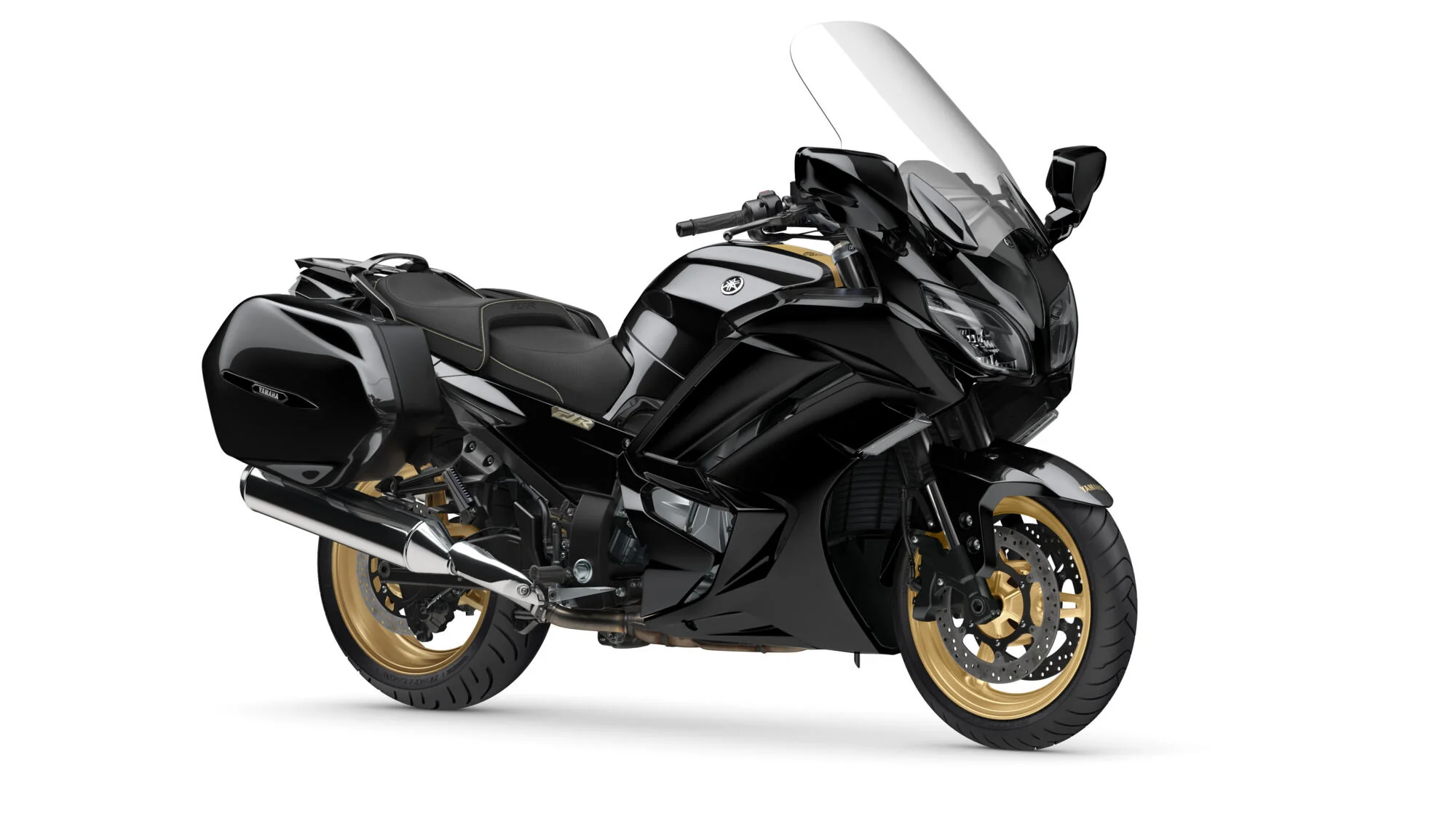

Yamaha FJR1300AE
Key specifications
Engine
1298 cc
Power
146 HP
Torque
138 Nm
Fuel type
petrol
Fuel capacity
6.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Yamaha
- Model
- FJR1300AE
- Category
- Sport touring
- Light
- Front LED lights with adaptive cornering lights
- Starter
- Electric
- Comments
- Windshield
- .
- Heated
- grips.
- Electronically
- adjustable suspension system.
- Color Options
- Graphite, Silver
- Factory Warranty
- 1 Year (Limited Factory Warranty)
- Carrying Capacity
- Saddle bags
- Power
- 146.20 HP (106.7 kW)) @ 8000 RPM
- Clutch
- Assist and Slipper Clutch
- Torque
- 138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Engine Type
- Forward-inclined parallel cylinder
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 66.2 mm (3.1 x 2.6 inches)
- Compression
- 10.8:1
- Displacement
- 1298.00 ccm (79.20 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Fuel Consumption
- 6.53 litres/100 km (15.3 km/l or 36.02 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 805 mm (31.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.90 litres (0.32 quarts)
- Fuel Capacity
- 24.98 litres (6.60 gallons)
- Overall Width
- 749 mm (29.5 inches)
- Overall Height
- 1,455 mm (57.3 inches)
- Overall Length
- 2,230 mm (87.8 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Weight Incl Oil Gas Etc
- 292.0 kg (643.7 pounds)
- Rake
- 26.0°
- Trail
- 109 mm (4.3 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminium, diamond shaped
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Linked monoshock with spring preload adjustment
- Front Suspension
- Upside-down telescopic fork, Ø 48 mm
- Rear Wheel Travel
- 124 mm (4.9 inches)
- Front Wheel Travel
- 135 mm (5.3 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
GraphiteSilver
