2014Sportbike

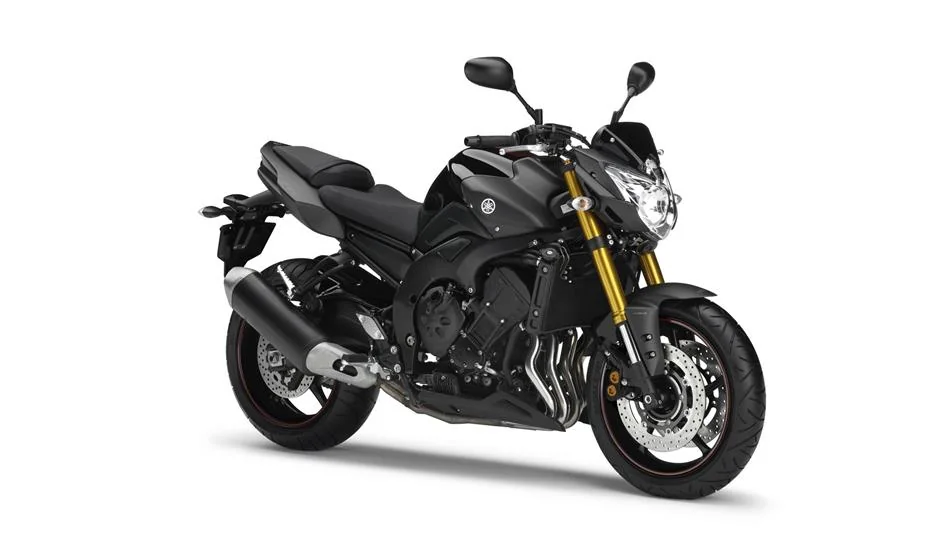

Yamaha FZ8
Key specifications
Engine
779 cc
Power
105 HP
Torque
82 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Hydraulic disc. Optional ABS.
Rear brakes
Single disc. Optional ABS.
Technical details
Source specification data
- Make
- Yamaha
- Model
- FZ8
- Category
- Sport
- Starter
- Electric
- Comments
- ABS adds 5 kg.
- Color Options
- Blue, black, white
- Factory Warranty
- 1 Year (Limited Factory Warranty)
- Power
- 104.73 HP (76.4 kW)) @ 10000 RPM
- Torque
- 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 8000 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Driveline
- O-ring chain
- Engine Type
- Ceramic-composite-coated cylinders and forged aluminum pistons
- Fuel System
- Injection
- Bore X Stroke
- 68.0 x 53.6 mm (2.7 x 2.1 inches)
- Compression
- 12.0:1
- Displacement
- 779.00 ccm (47.53 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Fuel Consumption
- 6.03 litres/100 km (16.6 km/l or 39.01 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 815 mm (32.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1,064 mm (41.9 inches)
- Overall Length
- 2,141 mm (84.3 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Weight Incl Oil Gas Etc
- 211.8 kg (467.0 pounds)
- Rake
- 25.0°
- Trail
- 109 mm (4.3 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Cast
- aluminum frame and
- Controlled
- -
- Fill
- aluminum die-cast swingarm
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Optional ABS.
- Front Brakes
- Double
- disc.
- Hydraulic
- disc.
- S
- .
- Rear Suspension
- Single shock, adjustable preload and rebound damping.
- Front Suspension
- Telescopic fork, adjustable compression and rebound.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 267 mm (10.5 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Blueblackwhite
