Back to Bike FinderYears: 2013
2013Sportbike

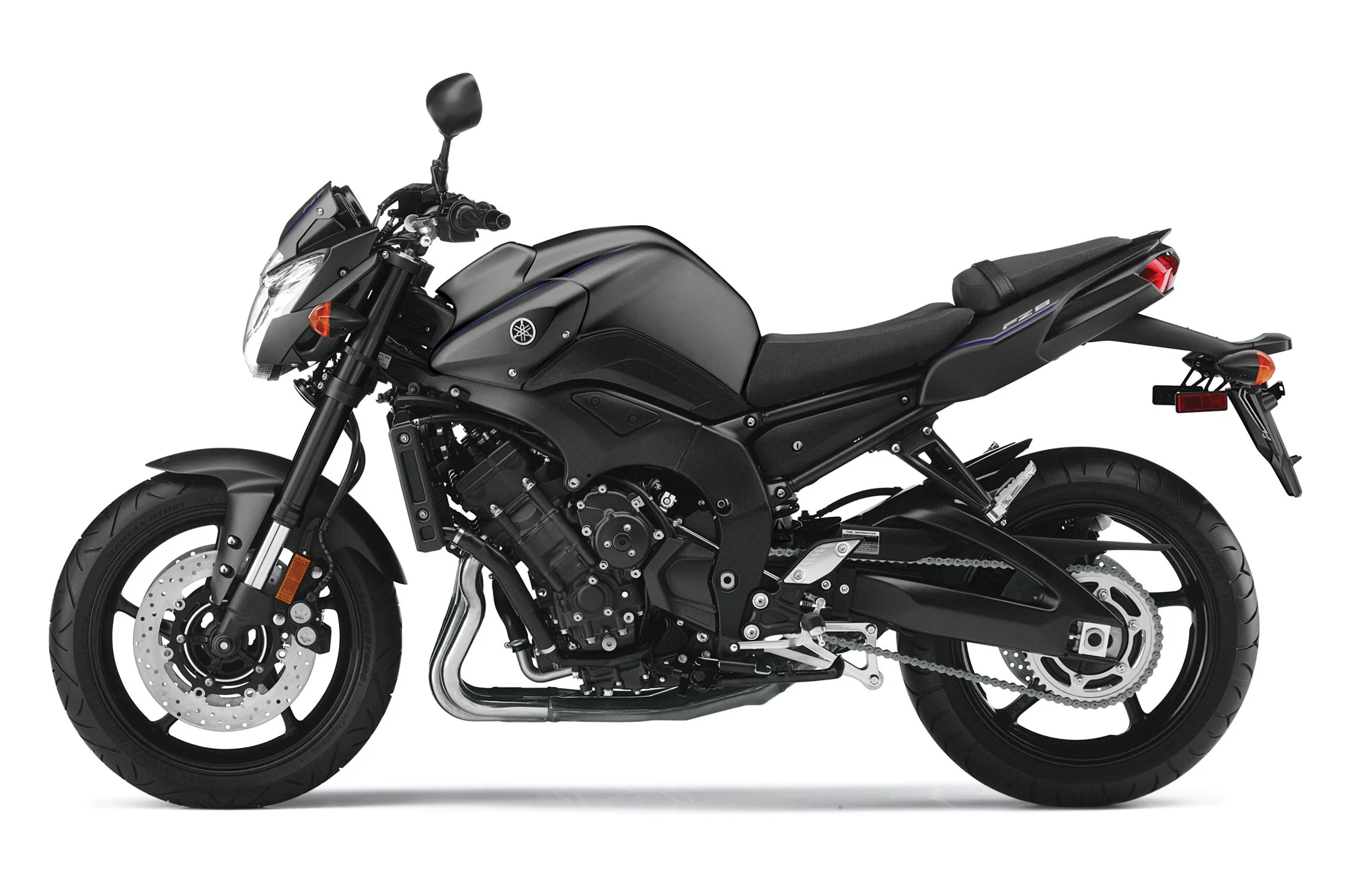

Yamaha FZ8N ABS
Key specifications
Engine
779 cc
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS. Floating discs w/4-piston calipers
Rear brakes
Single disc. ABS
Technical details
Source specification data
- Make
- Yamaha
- Model
- FZ8N ABS
- Category
- Sport
- Starter
- Electric
- Electrical
- 12 Volt
- Color Options
- White, black
- Clutch
- Multiplate
- Gearbox
- 6-speed
- Ignition
- I
- :
- Transistor Controlled Ignition
- with 32-bit
- Driveline
- O-ring chain
- Engine Type
- Forward-inclined parallel 4-cylinder
- Fuel System
- Injection. EFI
- Bore X Stroke
- 68.0 x 53.6 mm (2.7 x 2.1 inches)
- Compression
- 12.0:1
- Displacement
- 779.00 ccm (47.53 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Fuel Consumption
- 5.91 litres/100 km (16.9 km/l or 39.80 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 815 mm (32.1 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (0.25 quarts)
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1,064 mm (41.9 inches)
- Overall Length
- 2,141 mm (84.3 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Weight Incl Oil Gas Etc
- 216.0 kg (476.2 pounds)
- Rake
- 25.0°
- Trail
- 109 mm (4.3 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminium diamond
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. ABS
- Front Brakes
- Double
- disc.
- S
- .
- Floating
- discs w/4-piston calipers
- Rear Suspension
- Swingarm (link) , single shock
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 267 mm (10.5 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Whiteblack
