Back to Bike FinderYears: 2019 · 2017 · 2016
2017ATV

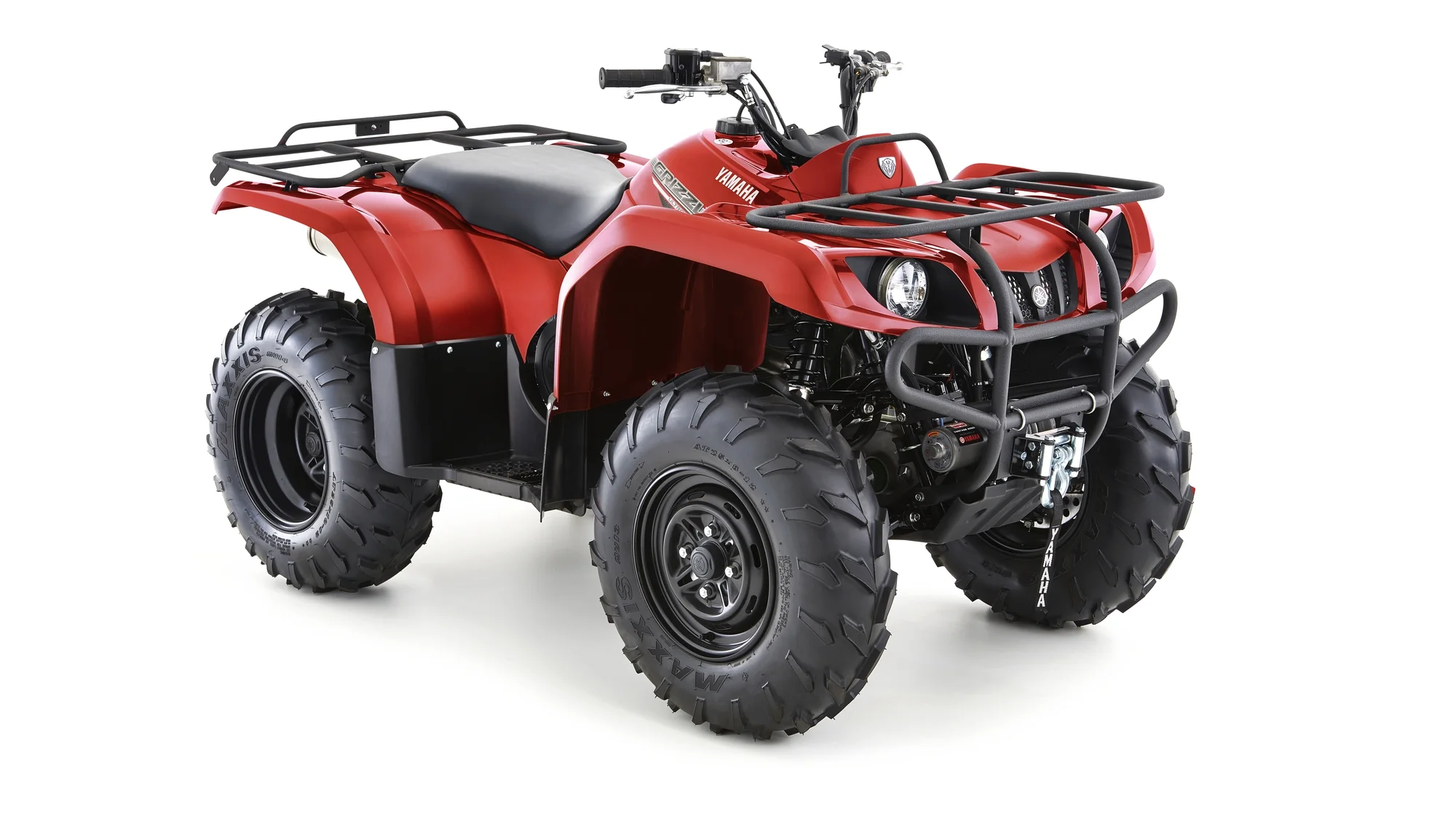

Yamaha Grizzly 350 2WD
Key specifications
Engine
348 cc
Fuel type
petrol
Fuel capacity
3.6 L
Transmission
Automatic
Seat height
33 mm
Front brakes
Double disc. Hydraulic.
Rear brakes
Expanding brake (drum brake). Sealed
Technical details
Source specification data
- Make
- Yamaha
- Model
- Grizzly 350 2WD
- Category
- ATV
- Light
- Dual
- 30
- W Krypton
- multireflector headlights and 21
- W
- /5
- W
- brakelight
- Starter
- Electric
- Electrical
- Maintenance-free 12-amp-hour battery
- Color Options
- Green, blue
- Factory Warranty
- 6 Month (Limited Factory Warranty)
- Carrying Capacity
- Steel cargo racks front and rear.
- Gearbox
- Automatic
- Ignition
- DC-CDI
- Driveline
- D
- .
- Ultramatic
- ®
- V
- -belt with rear wheel engine braking,
- F
- /
- N
- /
- R
- .
- Fuel System
- Carburettor. Mikuni 33mm BSR
- Bore X Stroke
- 83.0 x 64.5 mm (3.3 x 2.5 inches)
- Compression
- 9.2:1
- Displacement
- 348.00 ccm (21.23 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 828 mm (32.6 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.10 litres (0.20 quarts)
- Fuel Capacity
- 13.50 litres (3.57 gallons)
- Overall Width
- 1,085 mm (42.7 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 1,984 mm (78.1 inches)
- Ground Clearance
- 246 mm (9.7 inches)
- Weight Incl Oil Gas Etc
- 244.9 kg (540.0 pounds)
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Expanding brake (drum brake). Sealed
- Front Brakes
- Double disc. Hydraulic.
- Rear Suspension
- Swingarm
- Front Suspension
- Double A-Arm
- Rear Wheel Travel
- 180 mm (7.1 inches)
- Front Wheel Travel
- 160 mm (6.3 inches)
Available colors
Greenblue
