Back to Bike FinderYears: 2019 · 2015
2019ATV

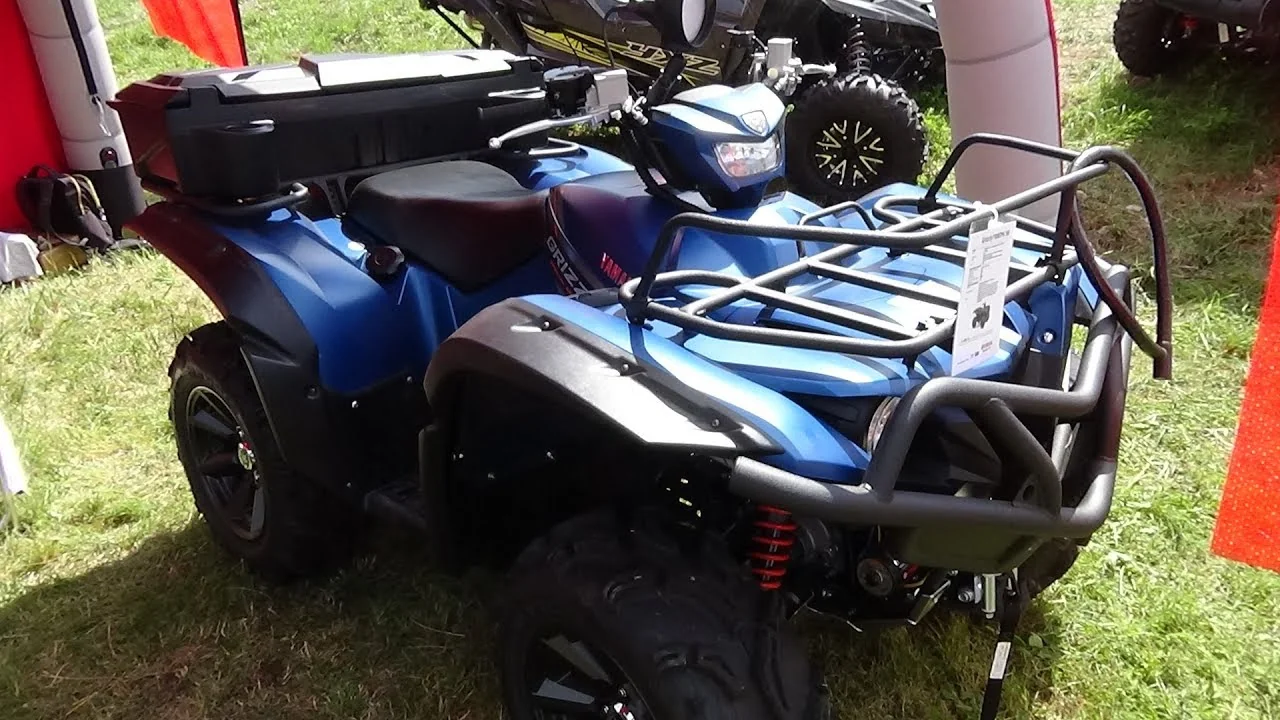

Yamaha Grizzly 700 EPS WTHC
Key specifications
Engine
686 cc
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
34 mm
Front brakes
Double disc. Hydraulic.
Rear brakes
Double disc. Hydraulic.
Technical details
Source specification data
- Make
- Yamaha
- Model
- Grizzly 700 EPS WTHC
- Category
- ATV
- Light
- LED headlight
- Starter
- Electric
- Comments
- Electronic Power Steering (EPS)
- Instruments
- D
- multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, and
- I
- function
- Color Options
- Satin Black
- Gearbox
- Automatic
- Ignition
- TCI
- Driveline
- On
- -
- Command
- 2
- D
- , 4
- D
- drive system, differential lock
- Engine Type
- Gear-driven crankshaft balancer shaft and rubber-damper engine mounts
- Fuel System
- Injection
- .
- Yamaha Fuel Injection (YFI)
- , 44mm
- Bore X Stroke
- 102.0 x 84.0 mm (4.0 x 3.3 inches)
- Compression
- 10.1:1
- Displacement
- 686.00 ccm (41.86 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 860 mm (33.9 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.60 litres (0.17 quarts)
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1,250 mm (49.2 inches)
- Overall Height
- 1,270 mm (50.0 inches)
- Overall Length
- 2,070 mm (81.5 inches)
- Ground Clearance
- 300 mm (11.8 inches)
- Weight Incl Oil Gas Etc
- 353.8 kg (780.0 pounds)
- Wheels
- Maxxis tyres
- Rear Tyre
- 27/10-14
- Front Tyre
- 27/10-14
- Rear Brakes
- Double disc. Hydraulic.
- Front Brakes
- Double disc. Hydraulic.
- Rear Suspension
- Independent Double Wishbone
- Front Suspension
- Independent Double Wishbone
- Rear Wheel Travel
- 232 mm (9.1 inches)
- Front Wheel Travel
- 193 mm (7.6 inches)
Available colors
Satin Black
