Back to Bike FinderYears: 2015 · 2012 · 2011
2011Scooter

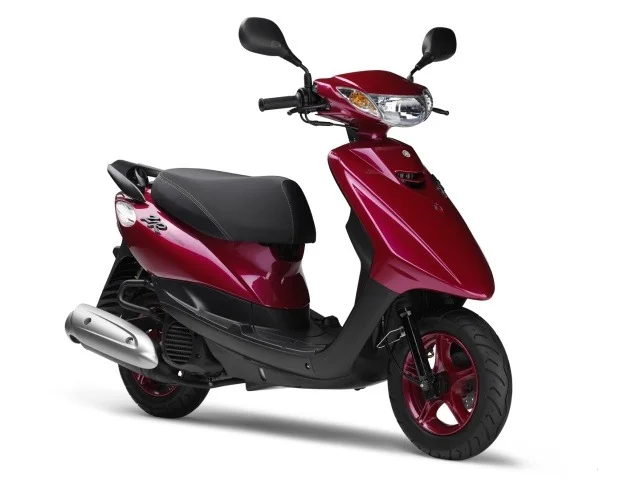

Yamaha Jog ZR
Key specifications
Engine
49 cc
Power
3 HP
Torque
3 Nm
Fuel type
petrol
Fuel capacity
1.5 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. Bremo
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Jog ZR
- Category
- Scooter
- Starter
- Electric & kick
- Comments
- Sold in Asia.
- Color Options
- Black, white, red
- Carrying Capacity
- Helmet storage under seat
- Power
- 3.38 HP (2.5 kW)) @ 7000 RPM
- Torque
- 2.97 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Top Speed
- 105.0 km/h (65.2 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Separate lubrication
- Transmission Type Final Drive
- Belt
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.50 litres (1.45 gallons)
- Overall Length
- 1,740 mm (68.5 inches)
- Ground Clearance
- 132 mm (5.2 inches)
- Weight Incl Oil Gas Etc
- 85.0 kg (187.4 pounds)
- Rear Tyre
- 120/70-12
- Frame Type
- Steel
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Bremo
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 70 mm (2.8 inches)
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
Available colors
Blackwhitered
