Back to Bike FinderYears: 2008
2007Scooter

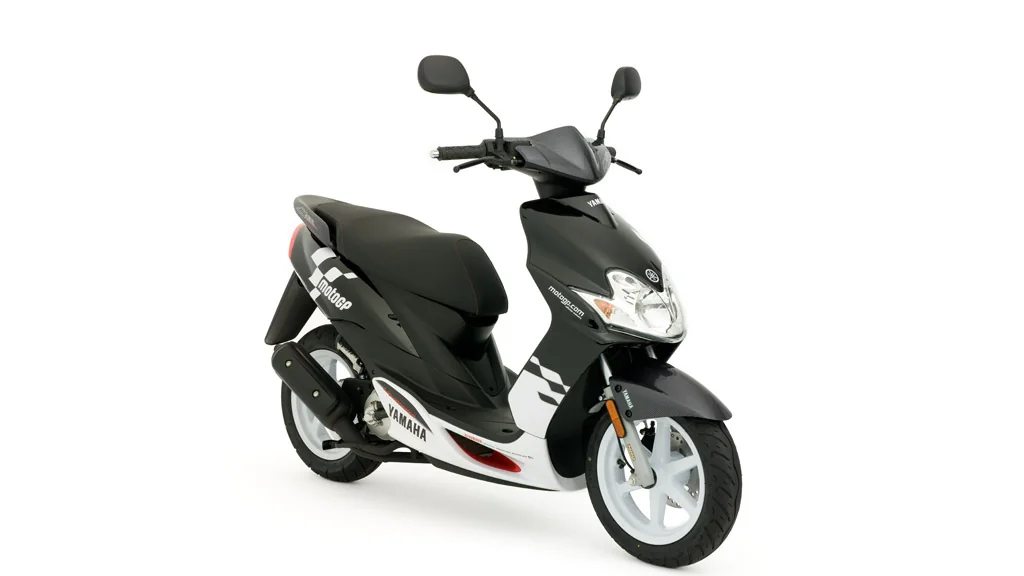

Yamaha JogRR MotoGP
Key specifications
Engine
49 cc
Power
3 HP
Torque
3 Nm
Weight
79 kg
Fuel type
petrol
Fuel capacity
1.5 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- JogRR MotoGP
- Category
- Scooter
- Starter
- Electric & kick
- Comments
- P
- paddock scooter with exclusive paint and graphics
- High
- -tech liquid-cooled 50cc two-stroke engine
- Nippy
- acceleration and brilliant all-round performance
- Fully
- automatic transmission – no gears to bother about
- Rugged
- , asymmetric steel chassis that’s built to really last
- Dual
- seat, passenger footpegs and grabrail as standard
- Attractive
- digital/analogue instrument panel
- Underseat
- locker looks after one full-face helmet
- Electric
- starter and kick starter – the best of both worlds
- Sporty
- suspension and short wheelbase for superb handling and steering
- Classy
- six spoke alloy 12in wheels with chunky tyres 190mm front disc brake for great stopping power
- Lateral
- air scoops below footboard
- Catalyser
- exhaust (
- U1
- )
- Flat
- tunnel-less footboard 5-litre fuel tank
- Wide
- range of accessories
- Power
- 2.84 HP (2.1 kW)) @ 7500 RPM
- Clutch
- Automatic centrifugal
- Torque
- 2.97 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- Electric (CDI)
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 11.4:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Separate lubrication
- Transmission Type Final Drive
- Belt
- Dry Weight
- 79.0 kg (174.2 pounds)
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.50 litres (1.45 gallons)
- Overall Width
- 675 mm (26.6 inches)
- Overall Height
- 1,065 mm (41.9 inches)
- Overall Length
- 1,740 mm (68.5 inches)
- Ground Clearance
- 132 mm (5.2 inches)
- Power Weight Ratio
- 0.0359 HP/kg
- Rear Tyre
- 130/70-12
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic unit swing
- Front Suspension
- Hydraulic and telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
