2011Sportbike

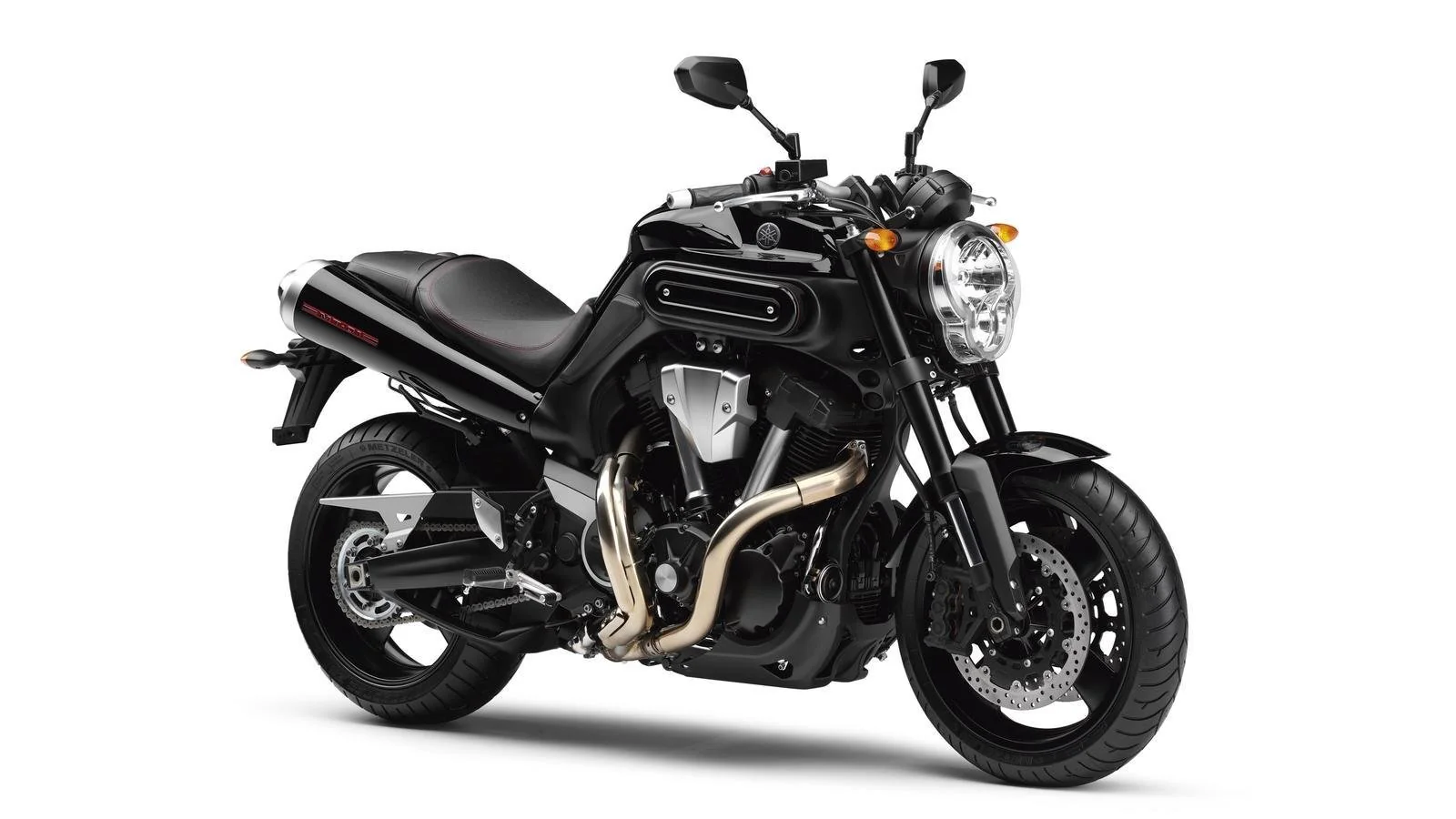

Yamaha MT-01
Key specifications
Engine
1670 cc
Power
89 HP
Torque
150 Nm
Weight
246 kg
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
5-speed
Seat height
33 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Yamaha
- Model
- MT-01
- Category
- Sport
- Starter
- Electric
- Power
- 88.90 HP (64.9 kW)) @ 4750 RPM
- Clutch
- Wet, multiple-disc
- Torque
- 150.30 Nm (15.3 kgf-m or 110.9 ft.lbs) @ 3750 RPM
- Gearbox
- 5-speed
- Ignition
- TCI
- Driveline
- Constant mesh, 5-speed
- Fuel System
- Injection. Electronic fuel injection
- Bore X Stroke
- 97.0 x 113.0 mm (3.8 x 4.4 inches)
- Compression
- 8.4:1
- Displacement
- 1670.00 ccm (101.90 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Lubrication System
- Dry sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 246.0 kg (542.3 pounds)
- Seat Height
- 825 mm (32.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 5.00 litres (0.33 quarts)
- Fuel Capacity
- 15.00 litres (3.96 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,105 mm (43.5 inches)
- Overall Length
- 2,185 mm (86.0 inches)
- Ground Clearance
- 145 mm (5.7 inches)
- Power Weight Ratio
- 0.3614 HP/kg
- Weight Incl Oil Gas Etc
- 265.0 kg (584.2 pounds)
- Trail
- 103 mm (4.1 inches)
- Rear Tyre
- 190/50-ZR17
- Frame Type
- Alu CF-die cast, double cradle
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Swing arm (link suspension)
- Front Suspension
- Telescopic forks
- Rear Wheel Travel
- 117 mm (4.6 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 267 mm (10.5 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
