2017Sportbike

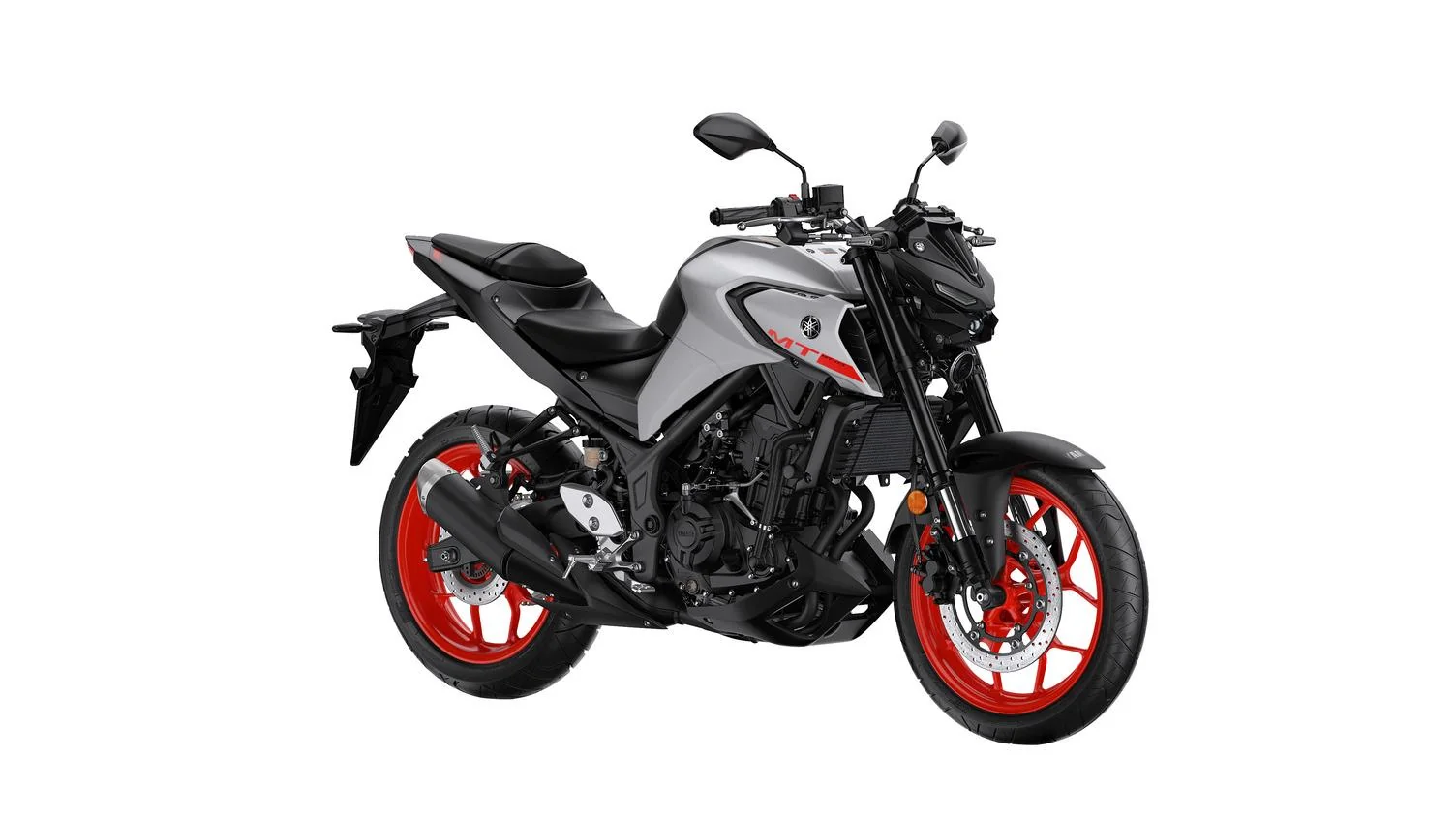

Yamaha MT-03
Key specifications
Engine
321 cc
Power
42 HP
Torque
29 Nm
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
31 mm
Front brakes
Double disc. Hydraulic
Rear brakes
Single disc. Hydraulic
Technical details
Source specification data
- Make
- Yamaha
- Model
- MT-03
- Category
- Naked bike
- Starter
- Electric
- Color Options
- Black, blue/white
- Power
- 42.00 HP (30.7 kW)) @ 10750 RPM
- Clutch
- Wet, Multiple Disc
- Torque
- 29.00 Nm (3.0 kgf-m or 21.4 ft.lbs) @ 9000 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Driveline
- Constant mesh
- Fuel System
- Injection
- Bore X Stroke
- 68.0 x 44.1 mm (2.7 x 1.7 inches)
- Compression
- 11.2:1
- Displacement
- 321.00 ccm (19.59 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.40 litres (0.16 quarts)
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Height
- 1,035 mm (40.7 inches)
- Overall Length
- 2,090 mm (82.3 inches)
- Ground Clearance
- 160 mm (6.3 inches)
- Weight Incl Oil Gas Etc
- 168.0 kg (370.4 pounds)
- Rake
- 25.0°
- Trail
- 95 mm (3.7 inches)
- Wheels
- 10-spoke alloy wheels
- Rear Tyre
- 160/60-17
- Frame Type
- Diamond, steel
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Double disc. Hydraulic
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Blackblue/white
