2018Naked

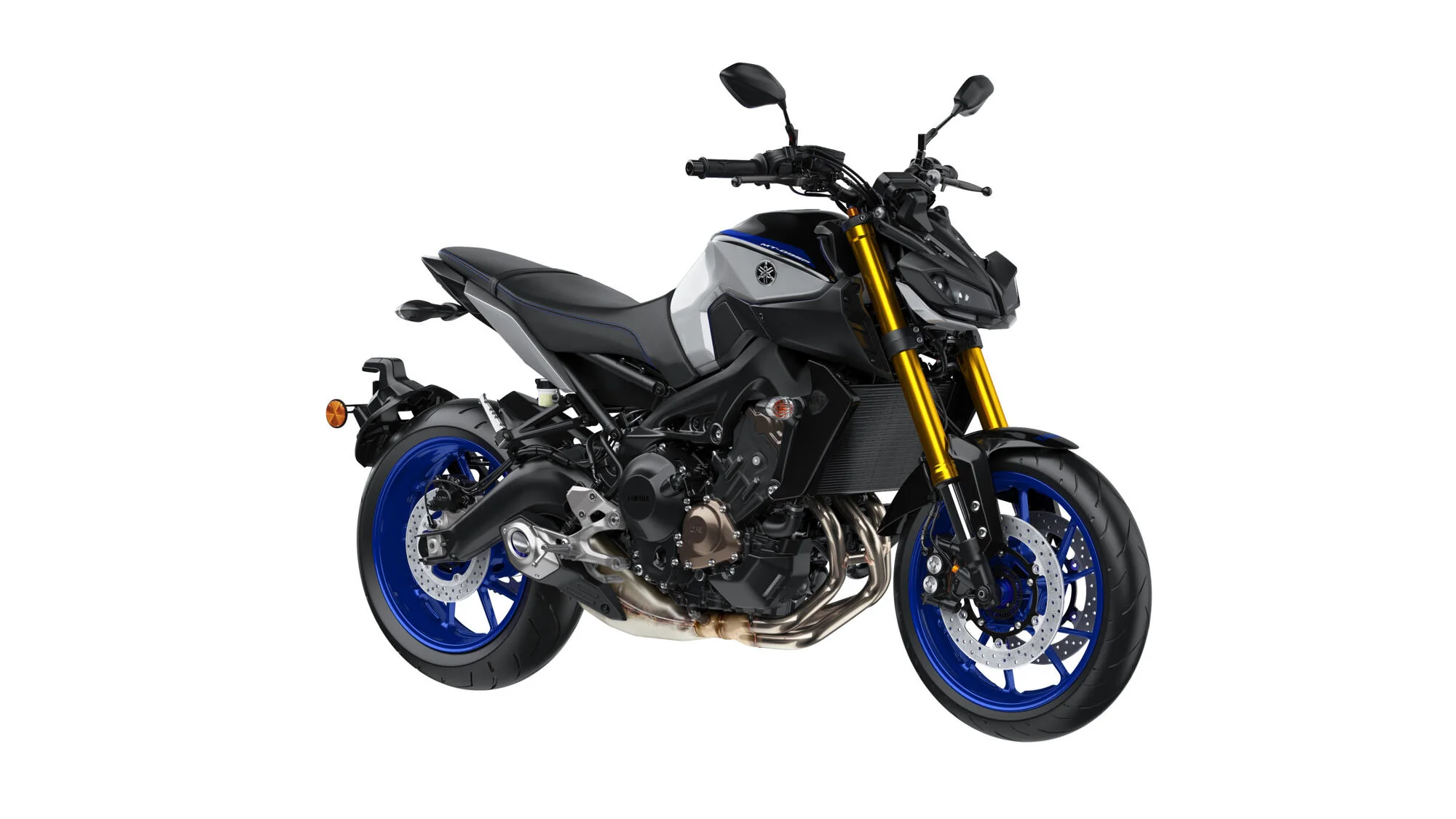

Yamaha MT-09 SP
Key specifications
Engine
847 cc
Power
113 HP
Torque
88 Nm
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS. Hydraulic.
Rear brakes
Single disc. ABS. Hydraulic.
Technical details
Source specification data
- Make
- Yamaha
- Model
- MT-09 SP
- Category
- Naked bike
- Light
- LED twin-eye headlights
- Starter
- Electric
- Comments
- Traction Control System (TCS)
- and
- D
- -
- Color Options
- Silver/blue/carbon
- Power
- 113.45 HP (82.8 kW)) @ 10000 RPM
- Clutch
- Multiplate assist and slipper clutch
- Torque
- 87.50 Nm (8.9 kgf-m or 64.5 ft.lbs) @ 8900 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Fuel System
- Injection
- Bore X Stroke
- 78.0 x 59.1 mm (3.1 x 2.3 inches)
- Compression
- 11.5:1
- Displacement
- 847.00 ccm (51.68 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Fuel Consumption
- 5.50 litres/100 km (18.2 km/l or 42.77 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.40 litres (0.22 quarts)
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1,135 mm (44.7 inches)
- Overall Length
- 2,160 mm (85.0 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Alternate Seat Height
- 865 mm (34.1 inches) If adjustable, highest setting.
- Weight Incl Oil Gas Etc
- 193.0 kg (425.5 pounds)
- Rake
- 25.0°
- Trail
- 103 mm (4.1 inches)
- Wheels
- 10-spoke alloy wheels
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Diamond
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. ABS. Hydraulic.
- Front Brakes
- Double disc. ABS. Hydraulic.
- Rear Suspension
- Single shock, adjustable preload and rebound damping
- Front Suspension
- 41mm inverted fork, fully adjustable
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 137 mm (5.4 inches)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Silver/blue/carbon
