Back to Bike FinderYears: 2009
2009Scooter

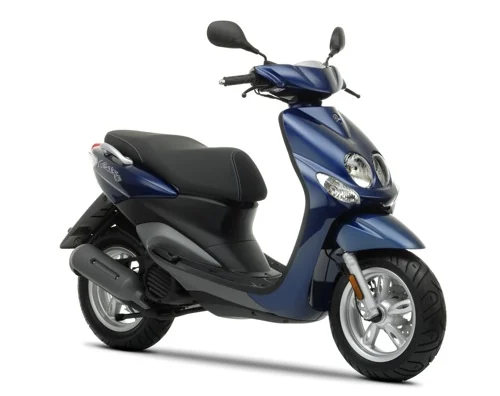

Yamaha Neos 4S
Key specifications
Engine
49 cc
Power
3 HP
Torque
3 Nm
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Neos 4S
- Category
- Scooter
- Starter
- Electric & kick
- Comments
- Also called Neo´s 4 Stroke
- Power
- 3.08 HP (2.2 kW)) @ 7000 RPM
- Torque
- 3.15 Nm (0.3 kgf-m or 2.3 ft.lbs) @ 7000 RPM
- Gearbox
- Automatic
- Ignition
- TCI
- Fuel System
- Injection
- Bore X Stroke
- 38.0 x 43.6 mm (1.5 x 1.7 inches)
- Compression
- 12.0:1
- Displacement
- 49.40 ccm (3.01 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Belt
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.40 litres (1.43 gallons)
- Overall Length
- 1,840 mm (72.4 inches)
- Weight Incl Oil Gas Etc
- 95.0 kg (209.4 pounds)
- Rear Tyre
- 130/70-12
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
