Back to Bike FinderYears: 2016 · 2015
2016Scooter

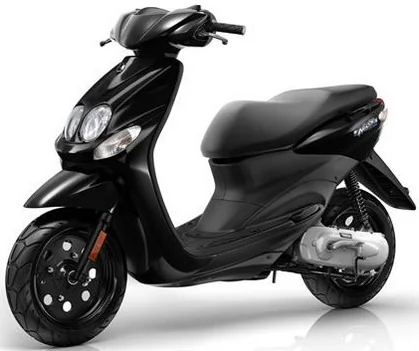

Yamaha Neos Easy
Key specifications
Engine
49 cc
Power
3 HP
Torque
3 Nm
Fuel type
petrol
Fuel capacity
1.6 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Neos Easy
- Category
- Scooter
- Light
- Dual headlights
- Starter
- Kick
- Instruments
- Analogue instruments
- Color Options
- Black
- Carrying Capacity
- Underseat helmet locker.
- Power
- 2.80 HP (2.0 kW)) @ 6750 RPM
- Torque
- 2.98 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Fuel System
- Carburettor. Gürtner PY12
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 10.7:1
- Displacement
- 49.20 ccm (3.00 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Transmission Type Final Drive
- Belt
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.10 litres (1.61 gallons)
- Overall Width
- 663 mm (26.1 inches)
- Overall Height
- 1,118 mm (44.0 inches)
- Overall Length
- 1,840 mm (72.4 inches)
- Ground Clearance
- 146 mm (5.7 inches)
- Weight Incl Oil Gas Etc
- 88.0 kg (194.0 pounds)
- Wheels
- Alloy wheels
- Rear Tyre
- 130/70-12
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Hydraulic unit swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 70 mm (2.8 inches)
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 110 mm (4.3 inches)
Available colors
Black
