2024Scooter

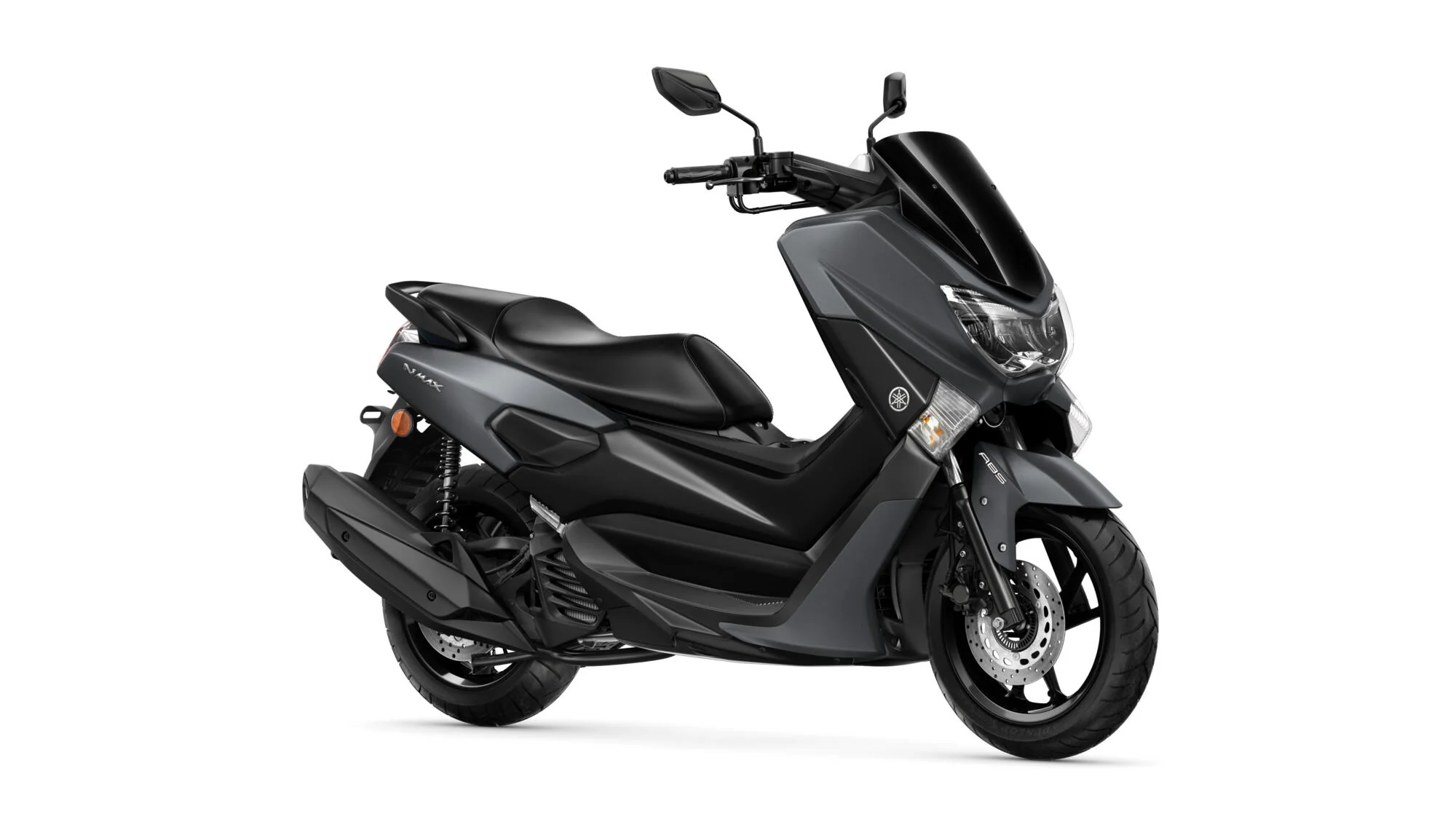

Yamaha NMAX 125
Key specifications
Engine
125 cc
Power
12 HP
Torque
11 Nm
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. Hydraulic. ABS.
Rear brakes
Single disc. ABS.
Technical details
Source specification data
- Make
- Yamaha
- Model
- NMAX 125
- Category
- Scooter
- Light
- LED headlights
- Starter
- Electric
- Instruments
- LCD instruments
- Color Options
- Ruby Red
- ,
- Deep Blue
- ,
- Milky White
- ,
- Power
- 12.1 HP (8.8 kW)) @ 8000 RPM
- Torque
- 11.2 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 6000 RPM
- Gearbox
- Automatic
- Ignition
- TCI
- Driveline
- V-Belt Automatic
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 52.0 x 58.7 mm (2.0 x 2.3 inches)
- Compression
- 11.2:1
- Displacement
- 125.0 ccm (7.63 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 5
- Fuel Consumption
- 2.20 litres/100 km (45.5 km/l or 106.92 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt (final drive)
- Seat Height
- 765 mm (30.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.10 litres (1.88 US gallons)
- Overall Width
- 740 mm (29.1 inches)
- Overall Height
- 1160 mm (45.7 inches)
- Overall Length
- 1935 mm (76.2 inches)
- Ground Clearance
- 125 mm (4.9 inches)
- Weight Incl Oil Gas Etc
- 131.0 kg (288.8 pounds)
- Rear Tyre
- 130/70-13
- Frame Type
- Underbone
- Front Tyre
- 110/70-13
- Rear Brakes
- Single disc. ABS.
- Front Brakes
- Single disc. Hydraulic. ABS.
- Rear Suspension
- Unit Swing, monoshock
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 85 mm (3.3 inches)
- Front Wheel Travel
- 100 mm (3.9 inches)
- Rear Brakes Diameter
- 230 mm (9.1 inches)
- Front Brakes Diameter
- 230 mm (9.1 inches)
Available colors
Ruby RedDeep BlueMilky WhitePower Grey
