2022Minibike

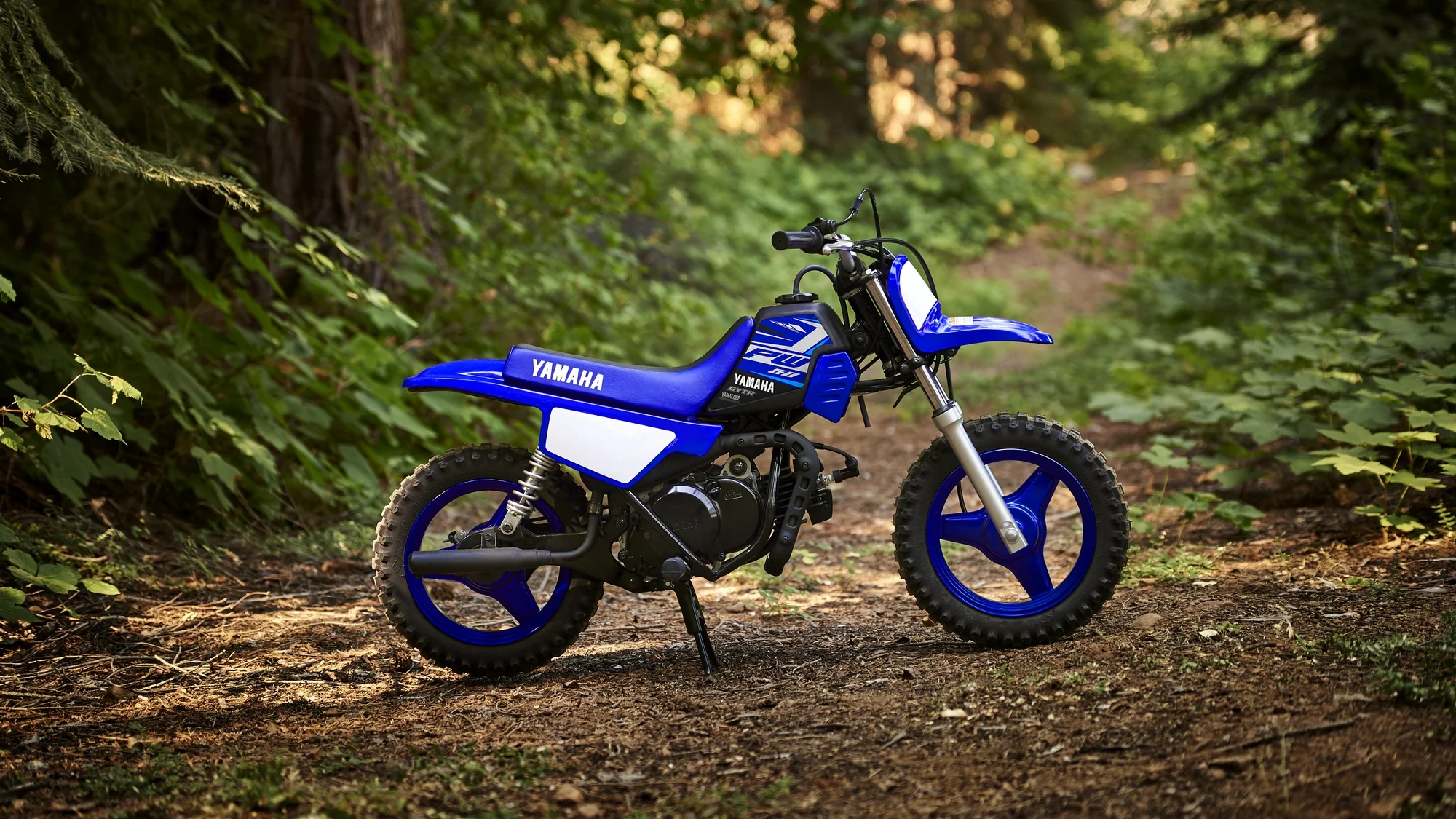

Yamaha PW50
Key specifications
Engine
49 cc
Fuel type
petrol
Fuel capacity
0.5 L
Transmission
Automatic
Seat height
19 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- PW50
- Category
- Minibike-cross
- Starter
- Kick
- Comments
- Intended
- for children.
- Easy
- -to-adjust throttle limiter.
- Color Options
- Team Yamaha Blue
- Factory Warranty
- 90 Day Limited Factory Warranty
- Clutch
- Wet centrifugal automatic clutch
- Gearbox
- Automatic
- Ignition
- CDI
- Engine Type
- Single cylinder, two-stroke
- Fuel System
- Carburettor. Mikuni VM12
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 6.0:1
- Displacement
- 49.0 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Reed-valve
- Lubrication System
- Separate 2-stroke oil tank
- Transmission Type Final Drive
- Shaft drive (cardan) (final drive)
- Seat Height
- 475 mm (18.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 2.01 litres (0.53 US gallons)
- Overall Width
- 610 mm (24.0 inches)
- Overall Height
- 706 mm (27.8 inches)
- Overall Length
- 1245 mm (49.0 inches)
- Ground Clearance
- 94 mm (3.7 inches)
- Weight Incl Oil Gas Etc
- 41.0 kg (90.4 pounds)
- Rake
- 25.5°
- Trail
- 50 mm (2.0 inches)
- Wheels
- 3-spoke
- Rear Tyre
- 2.50-10
- Frame Type
- Steel tube backbone
- Front Tyre
- 2.50-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Unit swingarm
- Front Suspension
- Telescopic fork 26mm
- Rear Wheel Travel
- 51 mm (2.0 inches)
- Front Wheel Travel
- 61 mm (2.4 inches)
Available colors
Team Yamaha Blue
