2022Sportbike

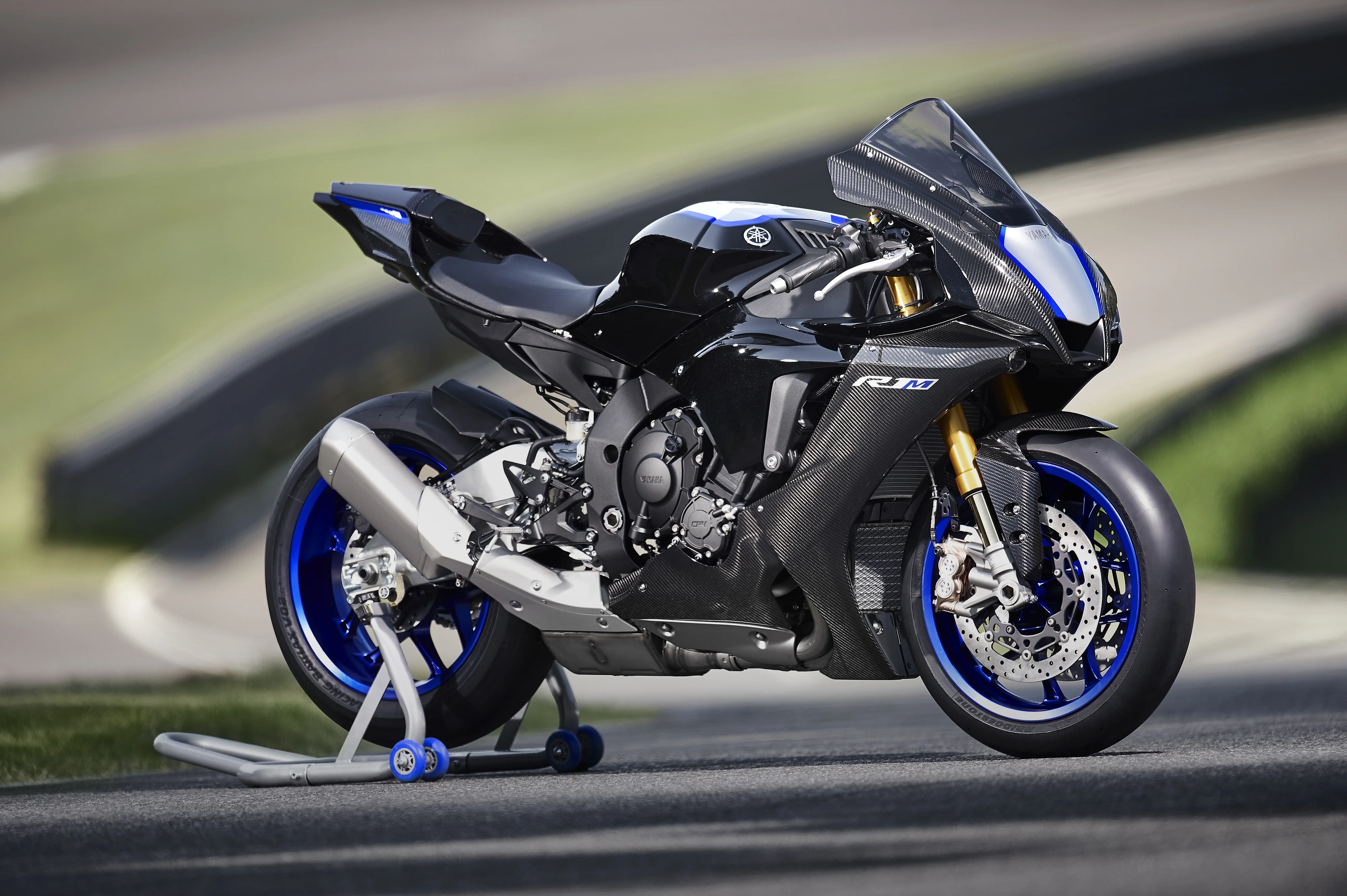

Yamaha R1M
Key specifications
Engine
998 cc
Power
197 HP
Torque
113 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Double disc. Hydraulic
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- Yamaha
- Model
- R1M
- Category
- Sport
- Starter
- Electric
- Comments
- Inertial Measurement Unit (IMU)
- .
- Launch Control
- .
- Wireless
- engine tuning.
- Small
- wind deflector.
- Engraved
- production number.
- Color Options
- Grey/blue
- Power
- 197.3 HP (144.0 kW)) @ 13500 RPM
- Torque
- 113.3 Nm (11.6 kgf-m or 83.6 ft.lbs) @ 11500 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Driveline
- Constant mesh
- Engine Type
- In-line six, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 50.9 mm (3.1 x 2.0 inches)
- Displacement
- 998.0 ccm (60.90 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 5
- Fuel Consumption
- 7.20 litres/100 km (13.9 km/l or 32.67 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 860 mm (33.9 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.90 litres (5.18 US quarts)
- Fuel Capacity
- 17.00 litres (4.49 US gallons)
- Overall Width
- 690 mm (27.2 inches)
- Overall Height
- 1165 mm (45.9 inches)
- Overall Length
- 2055 mm (80.9 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Weight Incl Oil Gas Etc
- 202.0 kg (445.3 pounds)
- Rake
- 24.0°
- Trail
- 102 mm (4.0 inches)
- Wheels
- Bridgestone Battlax RS11 tyres
- Rear Tyre
- 200/55-ZR17/C
- Frame Type
- Aluminium Deltabox, Diamond
- Front Tyre
- 120/70-ZR17M/C
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Double disc. Hydraulic
- Rear Suspension
- Swingarm
- Front Suspension
- Öhlins telescopic forks
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Grey/blue
