2016ATV

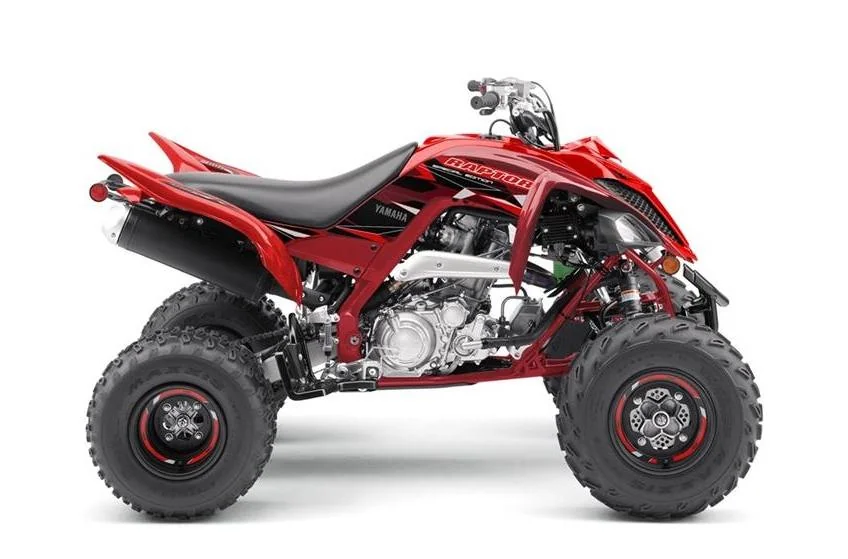

Yamaha Raptor 700
$7,799
Key specifications
Engine
686 cc
Fuel type
petrol
Fuel capacity
2.9 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Double disc. Ventilated hydraulic disc, twin piston
Rear brakes
Single disc. Ventilated hydraulic disc, twin piston
Technical details
Source specification data
- Make
- Yamaha
- Model
- Raptor 700
- Price
- S
- $ 7799.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- ATV
- Light
- Dual
- 30
- W Krypton
- multireflector headlights and 3.9/0.5
- D
- brakelight
- Starter
- Electric
- Color Options
- Team Yamaha Blue/White
- Factory Warranty
- 6 Month (Limited Factory Warranty)
- Gearbox
- 5-speed
- Ignition
- 16-Bit ECU
- Driveline
- D
- ; sealed
- O
- -ring chain, eccentric adjustment
- Fuel System
- Injection
- .
- Yamaha Fuel Injection (YFI)
- , 44mm
- Bore X Stroke
- 102.0 x 84.0 mm (4.0 x 3.3 inches)
- Compression
- 10.0:1
- Displacement
- 686.00 ccm (41.86 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 813 mm (32.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 10.98 litres (2.90 gallons)
- Overall Width
- 1,171 mm (46.1 inches)
- Overall Height
- 1,130 mm (44.5 inches)
- Overall Length
- 1,844 mm (72.6 inches)
- Ground Clearance
- 112 mm (4.4 inches)
- Weight Incl Oil Gas Etc
- 191.4 kg (422.0 pounds)
- Wheels
- Aluminum alloy wheels
- Rear Tyre
- 20/10-9
- Frame Type
- Hybrid steel aluminum frame
- Front Tyre
- 21/7-10
- Rear Brakes
- Single
- disc.
- Ventilated
- hydraulic disc, twin piston
- Front Brakes
- Double
- disc.
- Ventilated
- hydraulic disc, twin piston
- Rear Suspension
- Cast
- aluminum swing arm w/rebound,
- High
- -/
- Lo
- -speed compression and threaded preload adjustment, 10.1-in travel
- Front Suspension
- Independent
- double wishbone w/piggy back
- High
- -/
- Lo
- -speed compression, rebound and threaded preload adjustment, 9.1-in travel
Available colors
Team Yamaha Blue/White
