2020ATV

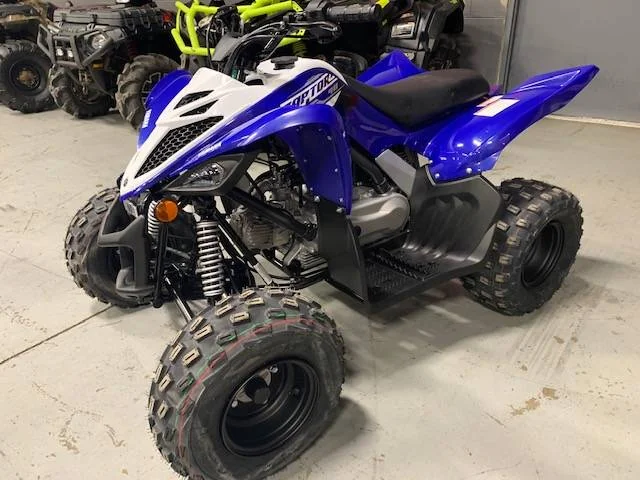

Yamaha Raptor 90
Key specifications
Engine
90 cc
Fuel type
petrol
Fuel capacity
1.7 L
Seat height
30 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Raptor 90
- Category
- ATV
- Starter
- Electric & kick
- Color Options
- Yamaha Blue, White
- Factory Warranty
- One year (unlimited mileage)
- Ignition
- CDI
- Fuel System
- Injection
- Bore X Stroke
- 47.0 x 51.8 mm (1.9 x 2.0 inches)
- Compression
- 9.2:1
- Displacement
- 89.90 ccm (5.49 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Seat Height
- 750 mm (29.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.60 litres (1.74 gallons)
- Overall Width
- 1,020 mm (40.2 inches)
- Overall Height
- 955 mm (37.6 inches)
- Overall Length
- 1,485 mm (58.5 inches)
- Ground Clearance
- 100 mm (3.9 inches)
- Weight Incl Oil Gas Etc
- 126.5 kg (278.9 pounds)
- Rear Tyre
- 18/9-8
- Front Tyre
- 18/7-8
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Adjustable single shock
- Front Suspension
- Adjustable single A-arm
Available colors
Yamaha BlueWhite
