Back to Bike FinderYears: 2022 · 2021 · 2020
2022Allround

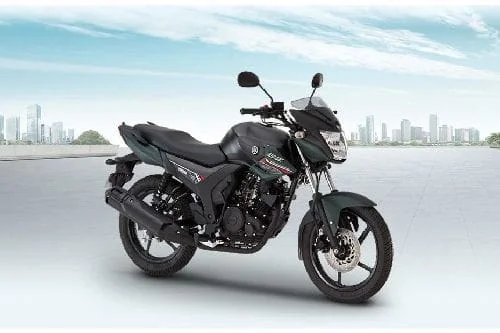

Yamaha SZ
Key specifications
Engine
149 cc
Power
12 HP
Torque
13 Nm
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc. Hydraulic.
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- SZ
- Category
- Allround
- Light
- 12V 35/25W Halogen bulb
- Starter
- Electric & kick
- Comments
- Sold in Asia.
- Electrical
- 12V-5Ah battery.
- Instruments
- Analogue
- Color Options
- Matte Blue, Matte Black
- Power
- 12.1 HP (8.8 kW)) @ 7500 RPM
- Clutch
- Wet, multiple-disc
- Torque
- 12.8 Nm (1.3 kgf-m or 9.4 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Bore X Stroke
- 57.3 x 57.9 mm (2.3 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 149.3 ccm (9.11 cubic inches)
- Cooling System
- Air
- Engine Details
- Forward-inclined cylinder
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 1.20 litres (1.27 US quarts)
- Fuel Capacity
- 14.00 litres (3.70 US gallons)
- Overall Width
- 750 mm (29.5 inches)
- Overall Height
- 1100 mm (43.3 inches)
- Overall Length
- 1990 mm (78.3 inches)
- Ground Clearance
- 165 mm (6.5 inches)
- Weight Incl Oil Gas Etc
- 133.0 kg (293.2 pounds)
- Rake
- 26.0°
- Trail
- 99 mm (3.9 inches)
- Rear Tyre
- 100/90-17
- Frame Type
- Diamond, tubular
- Front Tyre
- 2.75-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Hydraulic.
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic Hydraulic
Available colors
Matte BlueMatte Black
