Back to Bike FinderYears: 2007 · 2006
2009Allround

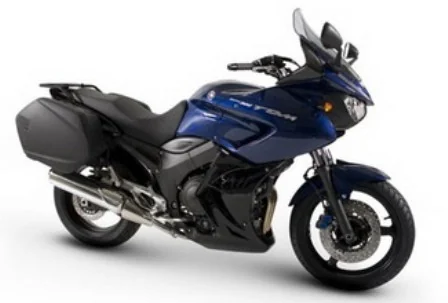

Yamaha TDM 900A
Key specifications
Engine
897 cc
Power
85 HP
Torque
89 Nm
Fuel type
petrol
Fuel capacity
5.3 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Yamaha
- Model
- TDM 900A
- Category
- Allround
- Color Options
- Blue, black, silver
- Power
- 85.02 HP (62.1 kW))
- Clutch
- Wet, multiple-disc coil spring
- Torque
- 88.80 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 92.0 x 67.5 mm (3.6 x 2.7 inches)
- Compression
- 10.4:1
- Displacement
- 897.00 ccm (54.73 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Lubrication System
- Dry sump
- Seat Height
- 825 mm (32.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (0.31 quarts)
- Fuel Capacity
- 20.00 litres (5.28 gallons)
- Overall Height
- 1,290 mm (50.8 inches)
- Overall Length
- 2,180 mm (85.8 inches)
- Ground Clearance
- 160 mm (6.3 inches)
- Weight Incl Oil Gas Etc
- 225.0 kg (496.0 pounds)
- Trail
- 114 mm (4.5 inches)
- Rear Tyre
- 160/60-ZR17
- Frame Type
- Aluminium
- Front Tyre
- 120/70-ZR18
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic forks
- Rear Wheel Travel
- 133 mm (5.2 inches)
- Front Wheel Travel
- 150 mm (5.9 inches)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Blueblacksilver
