2006Scooter

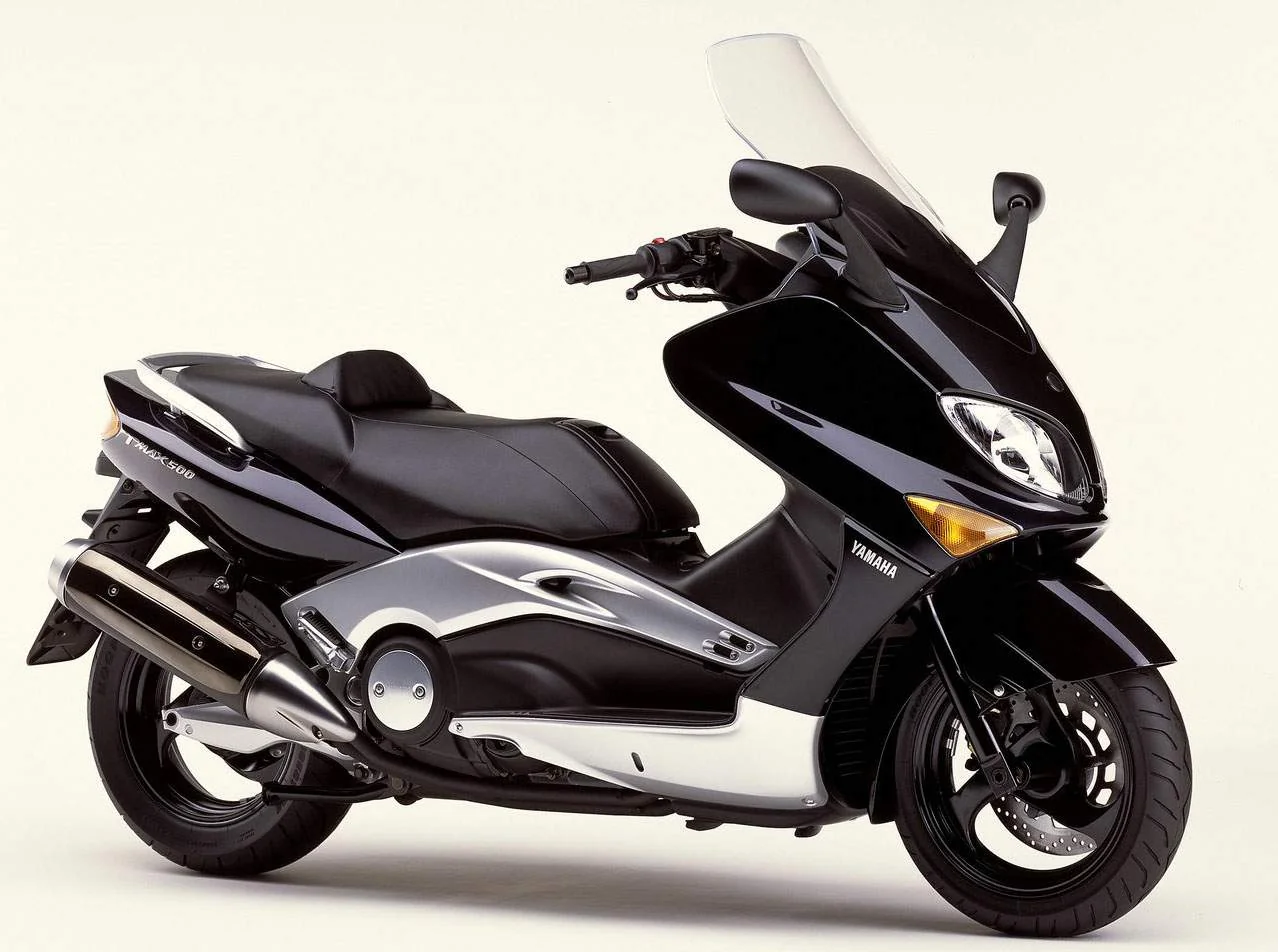

Yamaha TMAX - A
Key specifications
Engine
499 cc
Power
44 HP
Torque
48 Nm
Weight
205 kg
Fuel type
petrol
Fuel capacity
4.2 L
Seat height
31 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Yamaha
- Model
- TMAX - A
- Category
- Scooter
- Starter
- Electric
- Comments
- Available with ABS brakes.
- Power
- 43.71 HP (31.9 kW)) @ 7500 RPM
- Torque
- 47.60 Nm (4.9 kgf-m or 35.1 ft.lbs) @ 4850 RPM
- Bore X Stroke
- 66.0 x 73.0 mm (2.6 x 2.9 inches)
- Compression
- 11.0:1
- Displacement
- 499.00 ccm (30.45 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Lubrication System
- Wet sump
- Dry Weight
- 205.0 kg (451.9 pounds)
- Seat Height
- 795 mm (31.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 775 mm (30.5 inches)
- Overall Height
- 1,410 mm (55.5 inches)
- Overall Length
- 2,235 mm (88.0 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.2132 HP/kg
- Rear Tyre
- 160/60-M15
- Front Tyre
- 120/70-M14
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 105 mm (4.1 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 267 mm (10.5 inches)
- Front Brakes Diameter
- 267 mm (10.5 inches)
