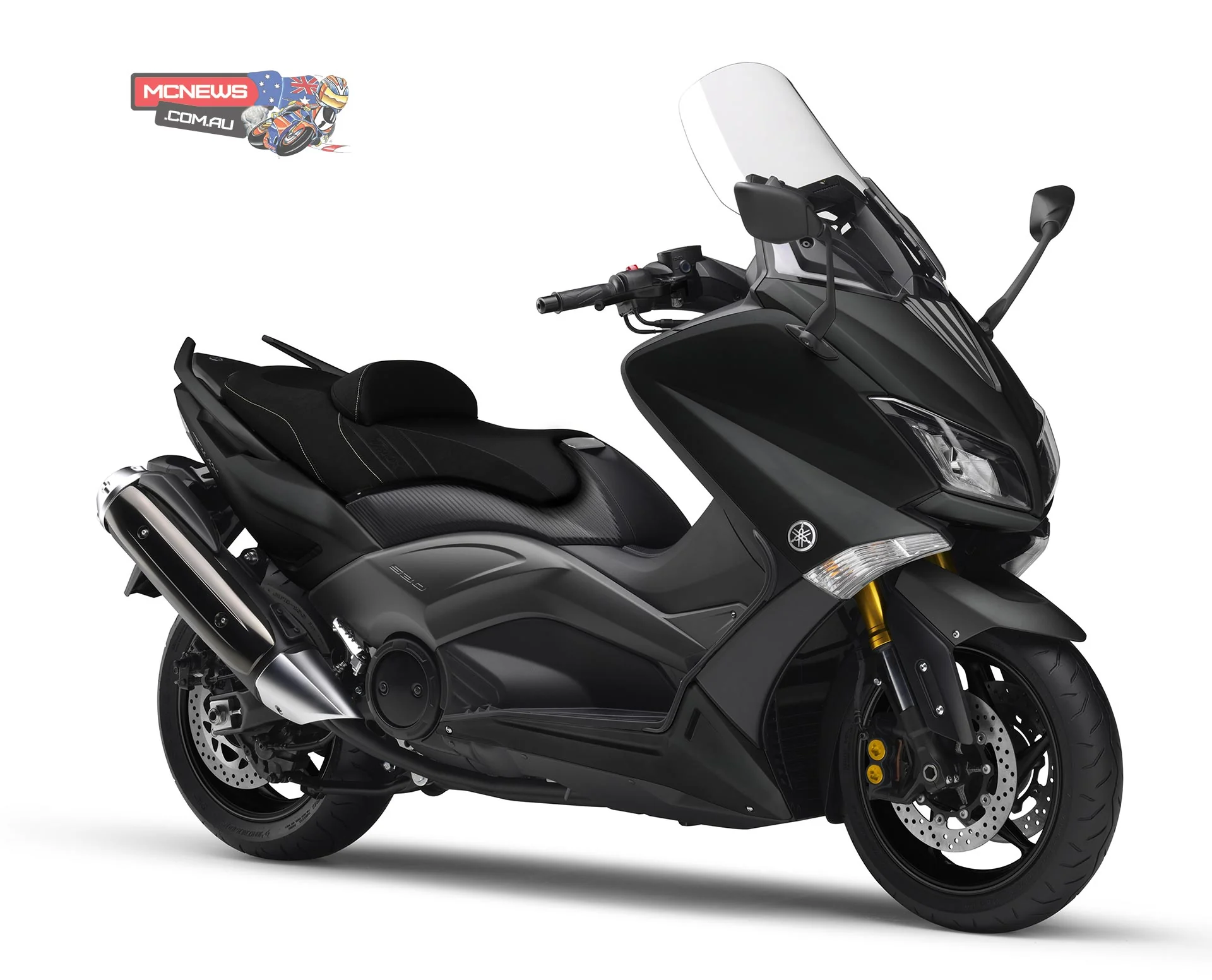

Yamaha TMAX Special Version
Key specifications
Engine
530 cc
Power
46 HP
Torque
52 Nm
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
Automatic
Seat height
32 mm
Front brakes
Double disc. Optional ABS.
Rear brakes
Single disc. Optional ABS.
Technical details
Source specification data
- Make
- Yamaha
- Model
- TMAX Special Version
- Category
- Scooter
- Starter
- Electric
- Comments
- Windshield.
- Color Options
- Grey
- Power
- 45.86 HP (33.5 kW)) @ 6750 RPM
- Clutch
- Wet, multiple-disc automatic centrifugal
- Torque
- 52.30 Nm (5.3 kgf-m or 38.6 ft.lbs) @ 5250 RPM
- Gearbox
- Automatic
- Ignition
- Digital TCI
- Driveline
- V-belt
- Engine Type
- Forward inclined parallel cylinders
- Fuel System
- Injection
- Bore X Stroke
- 66.0 x 73.0 mm (2.6 x 2.9 inches)
- Compression
- 11.0:1
- Displacement
- 530.00 ccm (32.34 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Fuel Consumption
- 5.00 litres/100 km (20.0 km/l or 47.04 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.14 litres (4.00 gallons)
- Overall Height
- 1,475 mm (58.1 inches)
- Overall Length
- 2,195 mm (86.4 inches)
- Ground Clearance
- 124 mm (4.9 inches)
- Weight Incl Oil Gas Etc
- 219.0 kg (482.8 pounds)
- Rear Tyre
- 160/60-15
- Frame Type
- Die-cast aluminium
- Front Tyre
- 120/70-15
- Rear Brakes
- Single disc. Optional ABS.
- Front Brakes
- Double disc. Optional ABS.
- Rear Suspension
- Swingarm
- Front Suspension
- 43mm upside-down telescopic forks
- Rear Wheel Travel
- 116 mm (4.6 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 267 mm (10.5 inches)
Available colors
Grey
