Back to Bike FinderYears: 2009
2009Cruiser

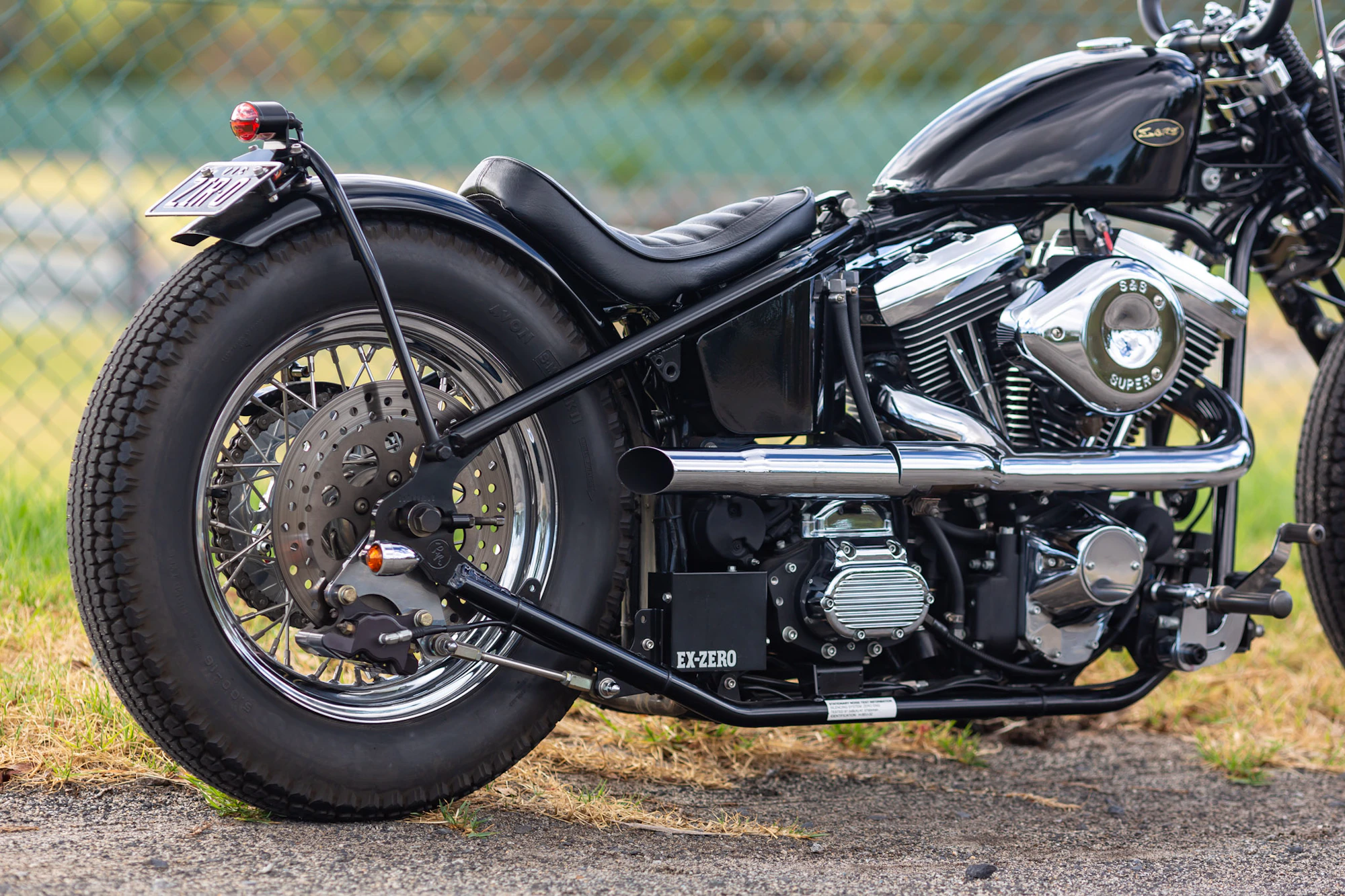

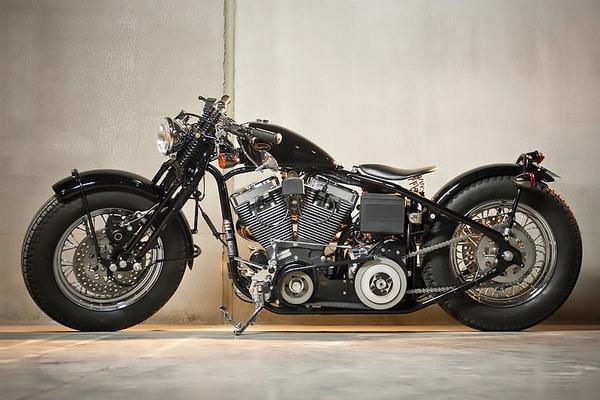

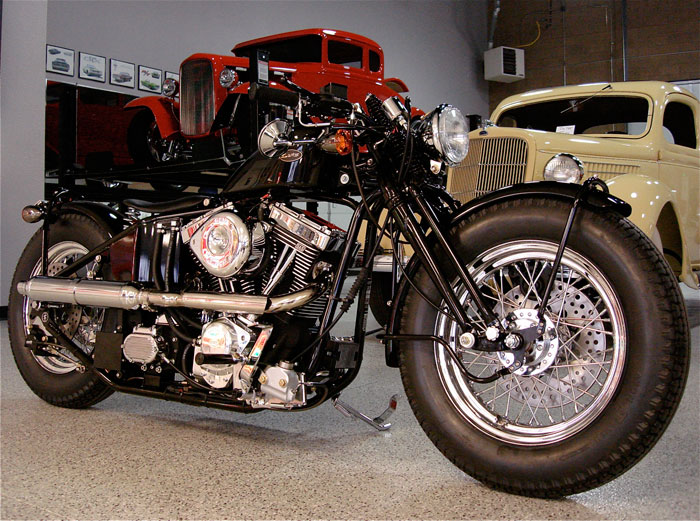

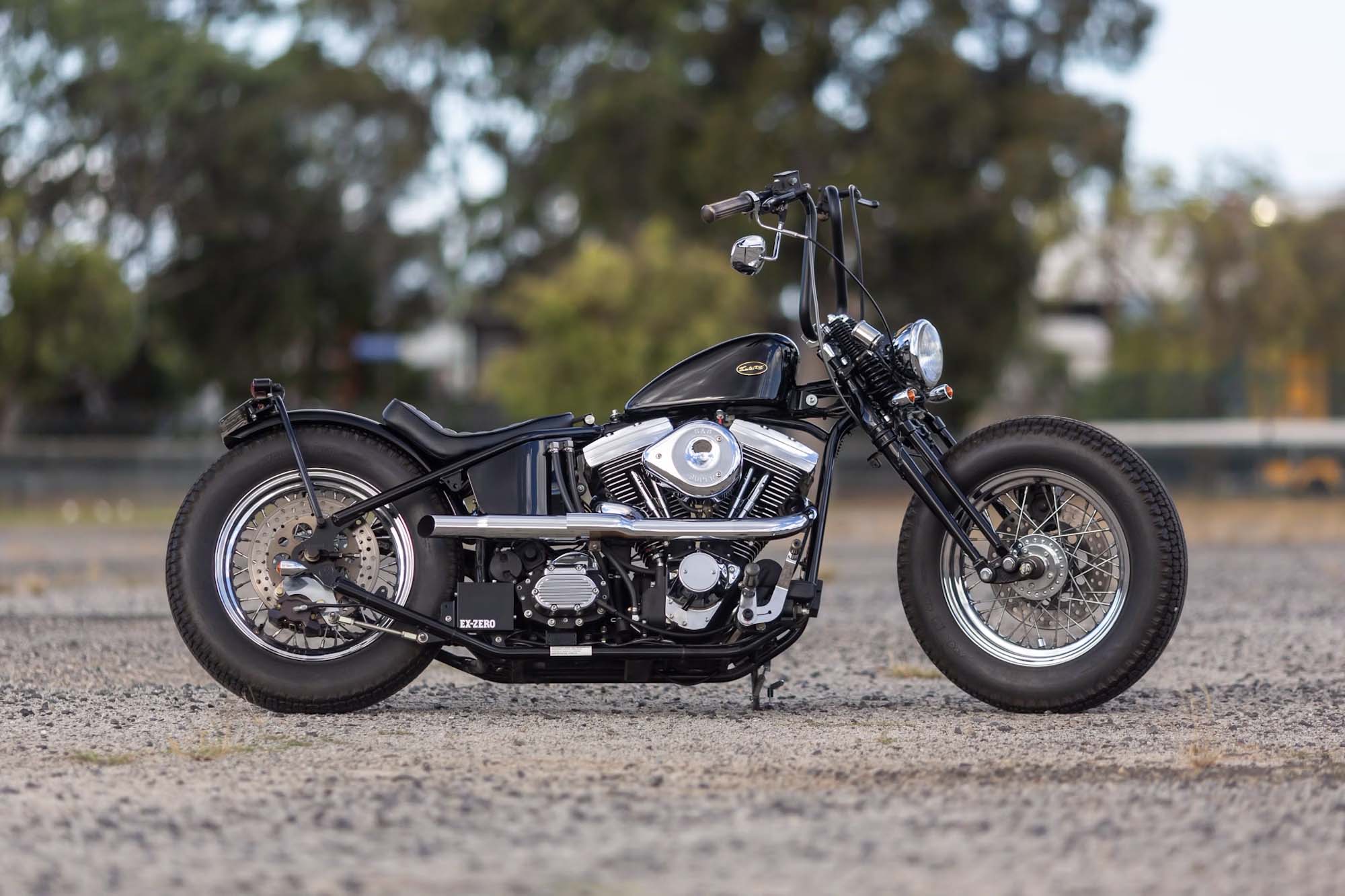

Zero Engineering Type 5
Key specifications
Engine
1337 cc
Weight
230 kg
Fuel type
petrol
Fuel capacity
2.1 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc. HD 1-Piston
Rear brakes
Single disc. Wilwood 2-P
Technical details
Source specification data
- Make
- Road Hopper
- Model
- Type 5
- Category
- Custom-cruiser
- Starter
- Electric
- Comments
- Made
- by
- Zero Engineering
- .
- S
- and
- S
- engine.
- Road Hopper
- .
- See
- also
- Samurai Choppers
- .
- Color Options
- SmokeBlue/Black, Yamabuki/Black
- Gearbox
- 5-speed
- Bore X Stroke
- 101.6 x 114.3 mm (4.0 x 4.5 inches)
- Compression
- 10.1:1
- Displacement
- 1337.00 ccm (81.58 cubic inches)
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 230.0 kg (507.1 pounds)
- Seat Height
- 686 mm (27.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.80 litres (0.18 quarts)
- Fuel Capacity
- 7.94 litres (2.10 gallons)
- Overall Width
- 710 mm (28.0 inches)
- Overall Length
- 2,300 mm (90.6 inches)
- Ground Clearance
- 100 mm (3.9 inches)
- Rear Tyre
- 300-16
- Frame Type
- ZERO Original Design
- Front Tyre
- 200-16
- Rear Brakes
- Single disc. Wilwood 2-P
- Front Brakes
- Single disc. HD 1-Piston
- Front Suspension
- 74 Springer
Available colors
SmokeBlue/BlackYamabuki/Black
