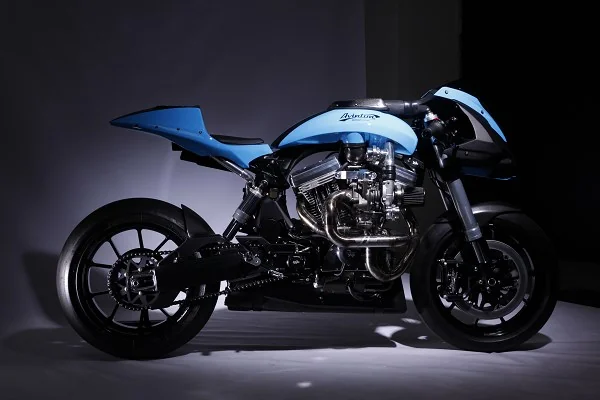

Avinton Collector Race
2014Naked

Avinton Collector Race

Key specifications

Engine
1645 cc
Power
120 HP
Torque
168 Nm
Weight
175 kg
Fuel type
petrol
Fuel capacity
3.4 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2014 Avinton Collector Race, a stunning naked bike that embodies both style and performance, meticulously crafted in France. Positioned uniquely in the market, this motorcycle is a testament to Avinton's commitment to quality and design. With an aesthetic that catches the eye and a performance pedigree that impresses even the most discerning riders, the Collector Race stands out in a crowded field of competitors. It’s not just a motorcycle; it’s a collector’s item that appeals to enthusiasts who appreciate the fusion of art and engineering. At the heart of the Collector Race lies a powerful 1645cc V2 four-stroke engine, delivering a robust 120 horsepower at 5750 RPM and a staggering torque of 168 Nm at 3000 RPM. This muscular engine propels the bike to a thrilling top speed of 262 km/h (162.8 mph), ensuring an exhilarating ride whether you're conquering winding roads or hitting the straightaways. The 5-speed gearbox and air-cooled system enhance the bike's performance, while the advanced Keihin FCR 46mm carburettor ensures optimal fuel delivery for responsive acceleration. Riders will appreciate the balance of power and handling, thanks to the bike's lightweight construction (weighing in at just 175 kg) and a carefully designed chassis that promotes agility and stability. The Collector Race boasts an array of features that elevate the riding experience. Its tubular frame, coupled with a suspended engine and integrated oil circuit, enhances stability and reduces vibrations. The 46mm adjustable Ceriani front fork and Sachs rear shocks provide a customizable ride, making it comfortable for longer journeys or spirited weekend rides. With an electric starter and a choice of striking color options—red, white, or black—this motorcycle exudes sophistication. Moreover, the bike's compact dimensions, with a seat height of 790 mm, cater to a variety of riders, ensuring everyone can enjoy the thrill of the ride. **

Pros

  • Powerful Performance: The 1645cc engine delivers significant horsepower and torque, making it ideal for spirited rides and highway cruising.
  • Lightweight and Agile: Weighing just 175 kg, the Collector Race offers excellent handling characteristics and maneuverability.
  • Customizable Suspension: The adjustable front and rear suspension allows riders to tailor the bike's handling to their personal preferences.

Cons

  • Limited Fuel Capacity: With a fuel tank holding only 13 litres, riders may find themselves stopping more frequently on longer journeys.
  • Single Disc Brakes: While effective, the single disc setup may not offer the stopping power that some riders prefer, especially in high-performance scenarios.
  • Niche Appeal: The unique design and limited production may not appeal to all motorcycle enthusiasts, potentially making it a less conventional choice for everyday riders.

Technical details

Source specification data

Make
Avinton
Model
Collector Race
Category
Naked bike
Starter
Electric
Comments
French made bike
Instruments
Digital
Color Options
Red, white, black
Power
120.00 HP (87.6 kW)) @ 5750 RPM
Torque
168.00 Nm (17.1 kgf-m or 123.9 ft.lbs) @ 3000 RPM
Gearbox
5-speed
Ignition
CDI single fire reprogrammable
Top Speed
262.0 km/h (162.8 mph)
Driveline
Kevlar belt primary
Engine Type
S and S V-Twin at 45 degree
Fuel System
Carburettor
.
R
46mm/diam. carburator with flat valve; air intake butterflies managed electronically
Bore X Stroke
101.6 x 101.0 mm (4.0 x 4.0 inches)
Compression
10.3:1
Displacement
1645.00 ccm (100.38 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
2 in 1 stainless steel or carbon
Lubrication System
Dry sump
Valves Per Cylinder
2
Transmission Type Final Drive
Chain
Dry Weight
175.0 kg (385.8 pounds)
Seat Height
790 mm (31.1 inches) If adjustable, lowest setting.
Fuel Capacity
13.00 litres (3.43 gallons)
Power Weight Ratio
0.6857 HP/kg
Weight Incl Oil Gas Etc
195.0 kg (429.9 pounds)
Rake
22.0°
Trail
85 mm (3.3 inches)
Rear Tyre
155/80-17
Frame Type
Tubular with suspended engine, oil circuit integrated in the frame
Front Tyre
120/70-17
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Sachs shocks
Front Suspension
46mm adjustable Ceriani fork
Rear Brakes Diameter
282 mm (11.1 inches)
Front Brakes Diameter
335 mm (13.2 inches)

Available colors

Redwhiteblack
