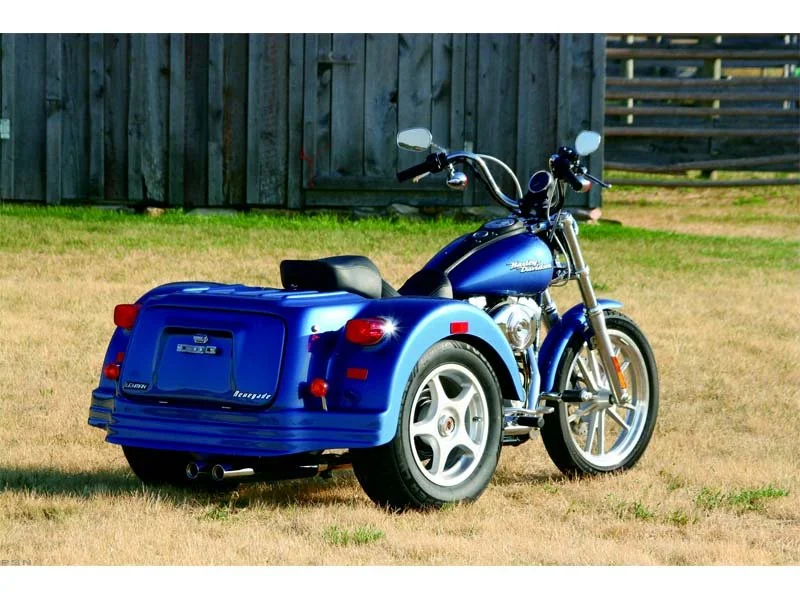

Lehman Trikes Renegade Dyna

Key specifications

Engine

1584 cc

Torque

123 Nm

Fuel type

petrol

Fuel capacity

4.8 L

Transmission

6-speed

Seat height

27 mm

Front brakes

Single disc

Rear brakes

Single disc

Technical details

Source specification data

Make: Lehman Trikes
Model: Renegade Dyna
Category: Custom-cruiser

Starter

Electric

Comments

Three: wheels.
Modified Harley: -
Davidson Softail Dyna: .

Torque

123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM

Gearbox

6-speed

Fuel System

Injection. Electronic Sequential Port Fuel Injection

Bore X Stroke

95.3 x 111.1 mm (3.8 x 4.4 inches)

Compression

9.2:1

Displacement

1584.00 ccm (96.66 cubic inches)

Cooling System

Air

Engine Details

V2, four-stroke

Exhaust System

Chrome Staggered Shorty Dual exhaust

Fuel Consumption

5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Greenhouse Gases

O2: g/km. (
O2: -
Carbon: dioxide emission)

Transmission Type Final Drive

Belt

Seat Height: 675 mm (26.6 inches) If adjustable, lowest setting.
Fuel Capacity: 18.16 litres (4.80 gallons)
Overall Width: 1,346 mm (53.0 inches)
Overall Height: 1,188 mm (46.8 inches)
Overall Length: 2,692 mm (106.0 inches)
Ground Clearance: 135 mm (5.3 inches)
Weight Incl Oil Gas Etc: 464.0 kg (1,022.9 pounds)

Rake: 29.0°
Trail: 119 mm (4.7 inches)
Rear Tyre: 160/70-B17
Frame Type: Mild steel, tubular frame; rectangular section backbone; stamped,
Front Tyre: 100/90-19
Rear Brakes: Single disc
Front Brakes: Single disc
Rear Suspension: Coil-over shock
Front Suspension: 49mm with polished aluminium fork
Rear Wheel Travel: 104 mm (4.1 inches)
Front Wheel Travel: 127 mm (5.0 inches)
Rear Brakes Diameter: 292 mm (11.5 inches)
Front Brakes Diameter: 300 mm (11.8 inches)
