Back to Bike FinderYears: 2020
2020Sportbike

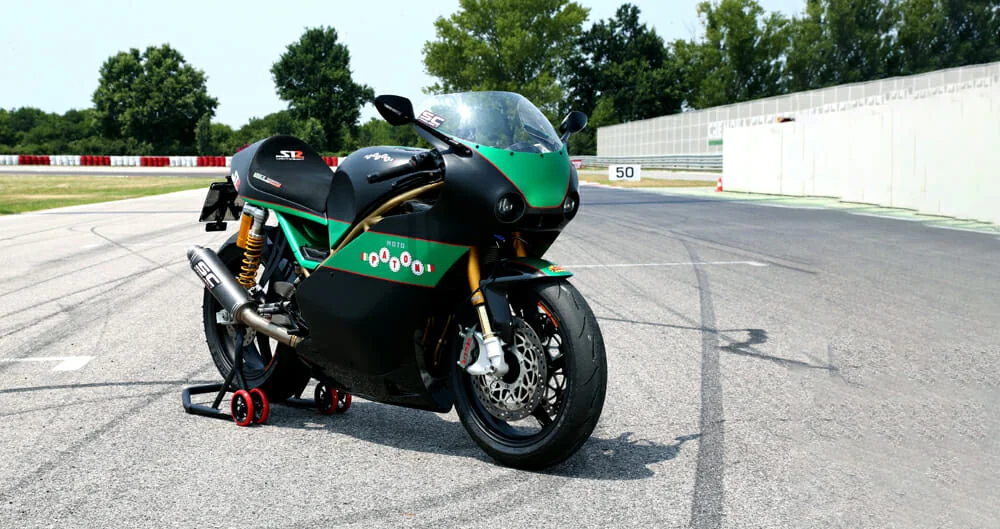

Paton S1_R Lightweight
Key specifications
Engine
649 cc
Power
71 HP
Torque
64 Nm
Fuel type
petrol
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Paton
- Model
- S1_R Lightweight
- Category
- Sport
- Starter
- Electric
- Color Options
- Green
- Power
- 71.07 HP (51.9 kW)) @ 8500 RPM
- Clutch
- Wet multi-disc clutch
- Torque
- 64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 7000 RPM
- Fuel System
- Injection. Keihin, 38mmx2
- Bore X Stroke
- 83.0 x 60.0 mm (3.3 x 2.4 inches)
- Compression
- 10.8:1
- Displacement
- 649.00 ccm (39.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Transmission Type Final Drive
- Chain
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Overall Width
- 680 mm (26.8 inches)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 1,980 mm (78.0 inches)
- Weight Incl Oil Gas Etc
- 158.0 kg (348.3 pounds)
- Rear Tyre
- 180/55-17
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Ohlins
- Front Suspension
- Ohlins 43mm upside down forks.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Green
