Back to Bike FinderYears: 2018
2018Off-road

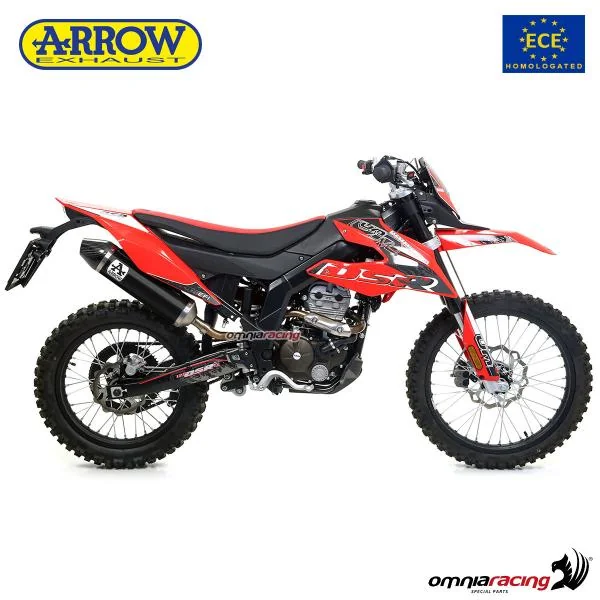

UM DSR EX
Key specifications
Engine
124 cc
Torque
11 Nm
Weight
120 kg
Fuel type
petrol
Fuel capacity
1.7 L
Transmission
6-speed
Seat height
36 mm
Front brakes
Single disc. Wave disc. Hydraulic.
Rear brakes
Single disc. Wave disc. Hydraulic.
Technical details
Source specification data
- Make
- UM
- Model
- DSR EX
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Color Options
- Black/Red, Red/Black, White/Orange
- Torque
- 10.90 Nm (1.1 kgf-m or 8.0 ft.lbs) @ 8250 RPM
- Gearbox
- 6-speed
- Ignition
- CDI
- Fuel System
- Injection. Marelli
- Bore X Stroke
- 58.0 x 47.0 mm (2.3 x 1.9 inches)
- Compression
- 12.8:1
- Displacement
- 124.20 ccm (7.58 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro IV
- Transmission Type Final Drive
- Chain
- Dry Weight
- 120.0 kg (264.6 pounds)
- Seat Height
- 910 mm (35.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.30 litres (1.66 gallons)
- Overall Width
- 808 mm (31.8 inches)
- Overall Height
- 1,420 mm (55.9 inches)
- Overall Length
- 2,182 mm (85.9 inches)
- Ground Clearance
- 240 mm (9.4 inches)
- Rear Tyre
- 120/80-18
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc. Wave disc. Hydraulic.
- Front Brakes
- Single disc. Wave disc. Hydraulic.
- Rear Suspension
- Progressive
- linkage
- Monoshock
- with gas reservoir
- Front Suspension
- Hydraulic telescopic
- Rear Wheel Travel
- 230 mm (9.1 inches)
- Front Wheel Travel
- 245 mm (9.6 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Black/RedRed/BlackWhite/Orange
