2024Sportbike

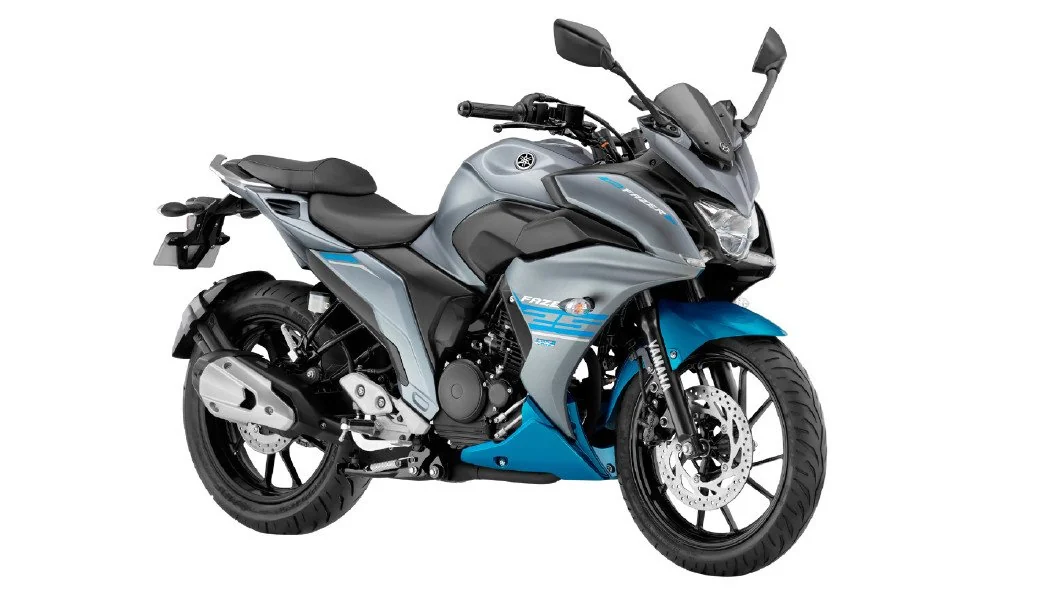

Yamaha Fazer
Key specifications
Engine
153 cc
Torque
14 Nm
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- Fazer
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Sold in India.
- Electrical
- 12 V, 5.0 AH (10H) battery.
- Color Options
- Black, white
- Clutch
- Wet, multiple-disc
- Torque
- 13.6 Nm (1.4 kgf-m or 10.0 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- DC CDI
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Bore X Stroke
- 58.0 x 57.9 mm (2.3 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 153.0 ccm (9.34 cubic inches)
- Cooling System
- Air
- Engine Details
- Forward-inclined cylinder
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 795 mm (31.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.00 litres (3.17 US gallons)
- Overall Width
- 791 mm (31.1 inches)
- Overall Height
- 1119 mm (44.1 inches)
- Overall Length
- 2075 mm (81.7 inches)
- Ground Clearance
- 160 mm (6.3 inches)
- Weight Incl Oil Gas Etc
- 141.0 kg (310.9 pounds)
- Rake
- 25.0°
- Trail
- 101 mm (4.0 inches)
- Rear Tyre
- 140/60-17
- Frame Type
- Diamond
- Front Tyre
- 100/80-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Ajustable, Hydraulic Shock Absorber
- Front Suspension
- Telescopic Hydraulic
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 130 mm (5.1 inches)
Available colors
Blackwhite
