KTM 450 SMR
2010Super Moto

KTM 450 SMR

Key specifications

Engine
449 cc
Weight
112 kg
Fuel type
petrol
Fuel capacity
2.2 L
Transmission
5-speed
Seat height
36 mm
Front brakes
Single disc. Magura four piston, radially bolted caliper
Rear brakes
Single disc. Brembo single-piston, floating caliper

Overview

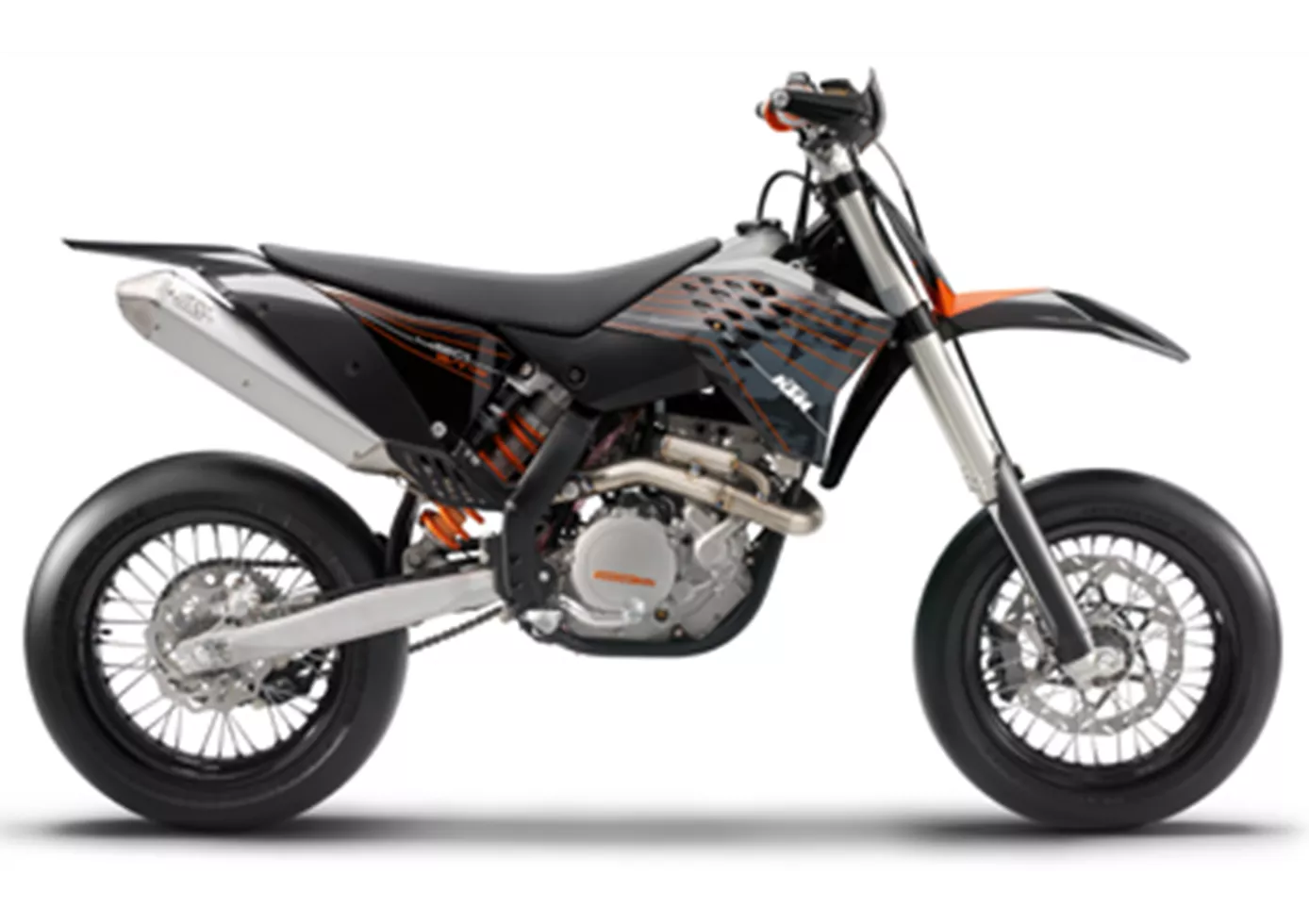

Introducing the 2010 KTM 450 SMR, a standout contender in the super motard segment that promises an exhilarating blend of off-road prowess and on-road agility. This model reflects KTM’s dedication to producing high-performance machines that cater to both competitive riders and everyday enthusiasts. With its striking gray, black, and orange aesthetics, the 450 SMR not only turns heads but also embodies the spirit of adventure and speed that KTM is renowned for. At the heart of the 450 SMR lies a robust 449.30cc single-cylinder, four-stroke engine, meticulously crafted to deliver an impressive performance that excites on both the track and the street. With a compression ratio of 12.5:1 and a bore and stroke of 97.0 x 60.8 mm, this engine generates thrilling power that translates into dynamic acceleration. The carbureted fuel system, featuring a Keihin MX FCR 41, ensures precise fuel delivery, while the Kokusan digital ignition system enhances responsiveness. Riders can take full control with a smooth-shifting 5-speed gearbox and an APTC slipper clutch, allowing for seamless gear transitions even under aggressive throttle input. The lightweight build of just 111.5 kg (245.8 pounds) combined with an agile chassis design makes handling a breeze, whether carving through tight corners or zooming down straightaways. KTM has equipped the 450 SMR with a host of features that elevate its performance and rider experience. The frame is constructed from a robust chromium-molybdenum central double-cradle design, powder-coated for durability, while the WP USD 48 mm front fork and WP PDS mono shock provide exceptional suspension travel of 280 mm and 310 mm, respectively. This ensures that the bike remains stable and responsive over varied terrains. Stopping power is equally impressive, with a 310 mm front disc brake and a 220 mm rear disc brake, ensuring confidence-inspiring braking performance. Furthermore, the adjustable ground clearance of 300 mm and a seat height of 920 mm cater to riders of different statures, making it accessible while still retaining its sporty edge. **

Pros

  • Exceptional power-to-weight ratio enhances acceleration and agility.
  • Advanced suspension setup provides superior handling on both paved and unpaved surfaces.
  • Eye-catching design and color options make it a standout in any setting.

Cons

  • The seat height may be challenging for shorter riders, limiting accessibility for some.
  • Limited fuel capacity (8.20 liters) may require more frequent refueling during long rides.
  • The race-oriented setup might not suit those looking for a more relaxed riding experience.

Technical details

Source specification data

Make
KTM
Model
450 SMR
Category
Super motard
Starter
Electric
Color Options
Gray/black/orange
Clutch
APTC slipper clutch, hydraulically operated
Gearbox
5-speed
Ignition
Kokusan digital
Fuel System
Carburettor. Keihin MX FCR 41
Bore X Stroke
97.0 x 60.8 mm (3.8 x 2.4 inches)
Compression
12.5:1
Displacement
449.30 ccm (27.42 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Exhaust System
Aluminium
Lubrication System
Pressure lubrication with 3 oil pumps
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
111.5 kg (245.8 pounds)
Seat Height
920 mm (36.2 inches) If adjustable, lowest setting.
Fuel Capacity
8.20 litres (2.17 gallons)
Ground Clearance
300 mm (11.8 inches)
Rake
26.5°
Trail
119 mm (4.7 inches)
Rear Tyre
170/55-17
Frame Type
Chromium
-
Molybdenum
central double-cradle-type frame, powder coated
Front Tyre
125/80-420
Rear Brakes
Single
disc.
Brembo
single-piston, floating caliper
Front Brakes
Single
disc.
Magura
four piston, radially bolted caliper
Rear Suspension
WP PDS mono shock
Front Suspension
WP USD 48 mm fork
Rear Wheel Travel
310 mm (12.2 inches)
Front Wheel Travel
280 mm (11.0 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
310 mm (12.2 inches)

Available colors

Gray/black/orange
